SL 11 112 32 G

Headers, Male Pins Overview

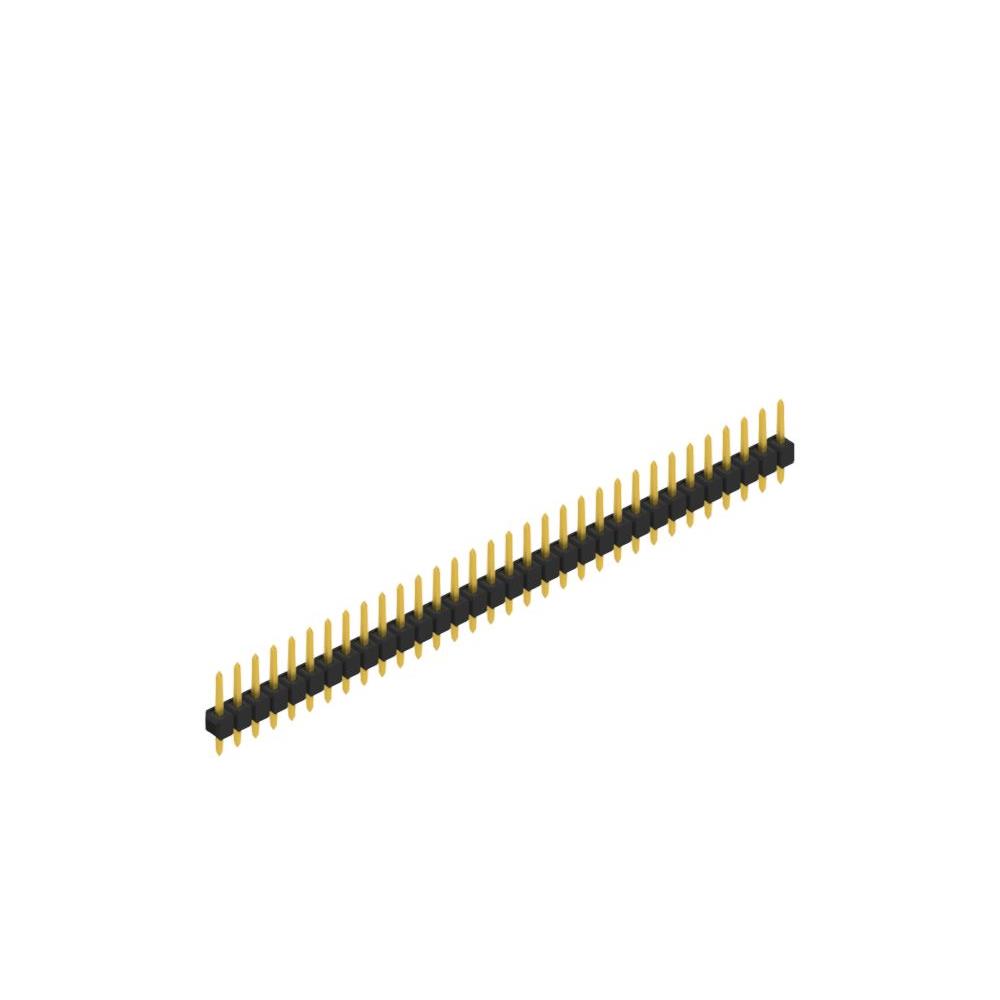

The SL 11 112 32 G is a single-row male pin header manufactured by Fischer Elektronik. It features 32 contacts with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting. The connector utilizes copper-tin contact material with a gold finish on the post section to ensure reliable conductivity. Rated for 3 A maximum current and 250 VAC voltage, it operates within a temperature range of -40°C to specified upper limits. The insulation is constructed from glass-filled polyamide (PA46), providing mechanical stability and thermal resistance for board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Gold-plated contact posts enhance corrosion resistance and signal integrity
• Glass-filled PA46 insulation offers high mechanical strength and thermal stability
• Straight through-hole design ensures secure PCB attachment

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly connections
• Industrial control unit interfaces
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' corresponds to the gold contact finish requirement. Confirm that the 32-position count matches the target circuit density. Ensure the through-hole footprint aligns with the PCB layout specifications. Check operating temperature ratings against environmental conditions. Validate insulation material compatibility with soldering processes.

Headers, Male Pins Selection Notes

Select this component when a robust, single-row male header is required for high-reliability connections. The gold finish is critical for environments prone to oxidation. The 2.54 mm pitch is standard for general-purpose electronics. Consider the straight orientation for direct vertical mating. Evaluate the current rating against peak load requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series provides various contact counts and configurations for different connectivity needs. The SL 11 112 32 G specifically addresses applications requiring thirty-two connection points in a single row. It complements other variants in the lineup that offer different pitches or row counts.

Headers, Male Pins Replacement Considerations

Direct substitutes may include SL 11 112 32 S if silver plating is acceptable. Verify dimensional compatibility before replacing. Ensure electrical ratings meet or exceed original specifications. Check insulation material properties for thermal matching.
