SL 11 112 32 S

Headers, Male Pins Overview

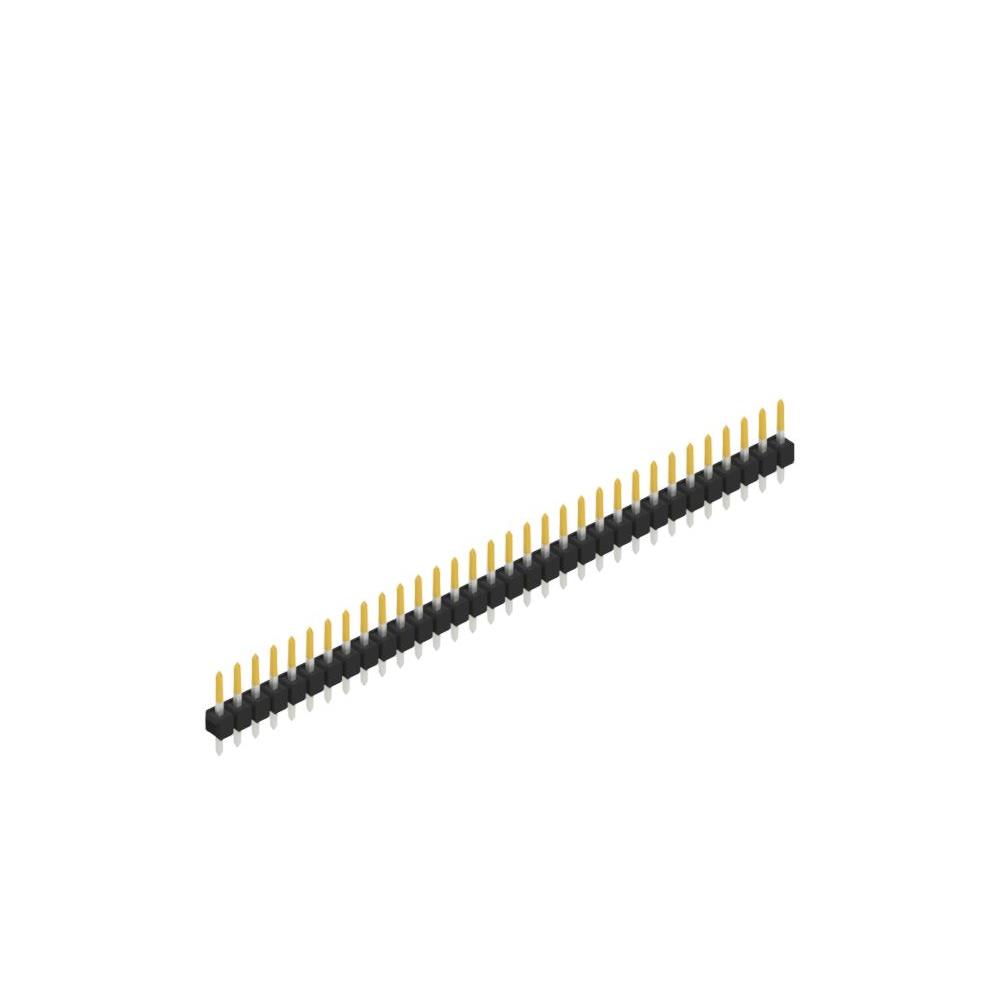

The SL 11 112 32 S is a single-row male pin header manufactured by Fischer Elektronik. It features 32 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole termination and square contact shapes. Contact materials consist of copper alloy with tin plating. Insulation is provided by polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections.
• Through-hole mounting design ensuring secure PCB attachment.
• Polyamide insulation material providing structural stability.

Headers, Male Pins Applications

• Industrial control systems requiring reliable signal transmission.
• Test and measurement equipment interfaces.
• General electronic assemblies utilizing standard 2.54 mm spacing.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm surface finish specifications. Ensure the required contact count matches exactly thirty-two positions. Confirm that the through-hole mounting style aligns with the target printed circuit board layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with thirty-two contacts is required. The 2.54 mm pitch must match the mating connector grid. Verify that the operating temperature range and thermal resistance during soldering are compatible with the assembly process. Ensure the polyamide insulation rating meets environmental constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision-engineered electronic components. The series offers various contact counts while maintaining consistent dimensional standards. Fischer Elektronik designs these headers for industrial applications demanding high reliability and precise mechanical alignment in electronic interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers within the SL 11 112 series sharing identical pitch and row configuration. Cross-manufacturer replacements require matching the 2.54 mm pitch, thirty-two position count, and through-hole mounting style to ensure physical compatibility.
