SL 11 112 32 Z

Headers, Male Pins Overview

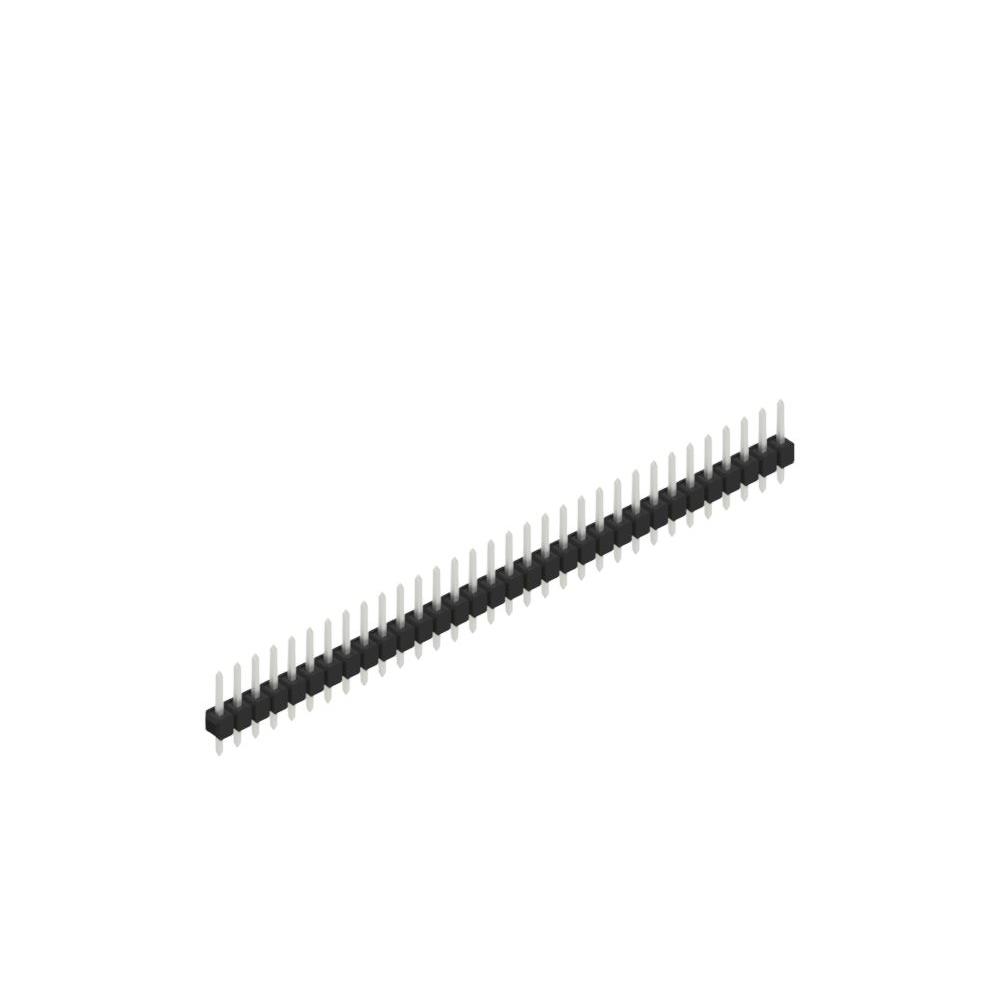

The SL 11 112 32 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 32 positions with a 0.635 mm (0.100 inch / 2.54 mm) pitch. The connector utilizes through-hole termination and square contact shapes. Contact materials consist of copper alloy with tin plating, providing a mating contact length of 5.40 mm and a column length of 3.00 mm. The total contact length measures 11.20 mm, while the insulation height is 2.80 mm. The component is packaged in bulk and remains in active production status.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for standard board-to-board or cable connections
• Through-hole soldering termination method ensuring secure PCB mounting
• Tin-plated copper alloy contacts for reliable electrical conductivity and corrosion resistance

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring harnesses
• Consumer electronics assembly requiring standardized spacing

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm pin count and series alignment. Ensure compatibility with mating female connectors regarding pitch and housing dimensions. Check for any specific RoHS compliance requirements if applicable to your manufacturing standards. Confirm packaging type matches project needs, as this item is typically supplied in bulk quantities.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required for through-hole applications. Consider the 32-position count and physical dimensions relative to available PCB space. Evaluate the tin-plated contact finish against environmental exposure conditions. Compare insertion depth and insulation height against adjacent components on the layout to prevent mechanical interference during assembly.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations designed for standard electronic interconnects. Similar parts in the lineup include variations such as SL 11 112 33 Z and SL 11 112 18 Z, differing primarily in the number of positions while maintaining consistent pitch and structural characteristics.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 112 33 Z and SL 11 112 18 Z, which share identical mechanical and electrical specifications except for the number of poles. Ensure that any replacement maintains the 2.54 mm pitch and single-row male configuration to guarantee proper mating with existing connectors.
