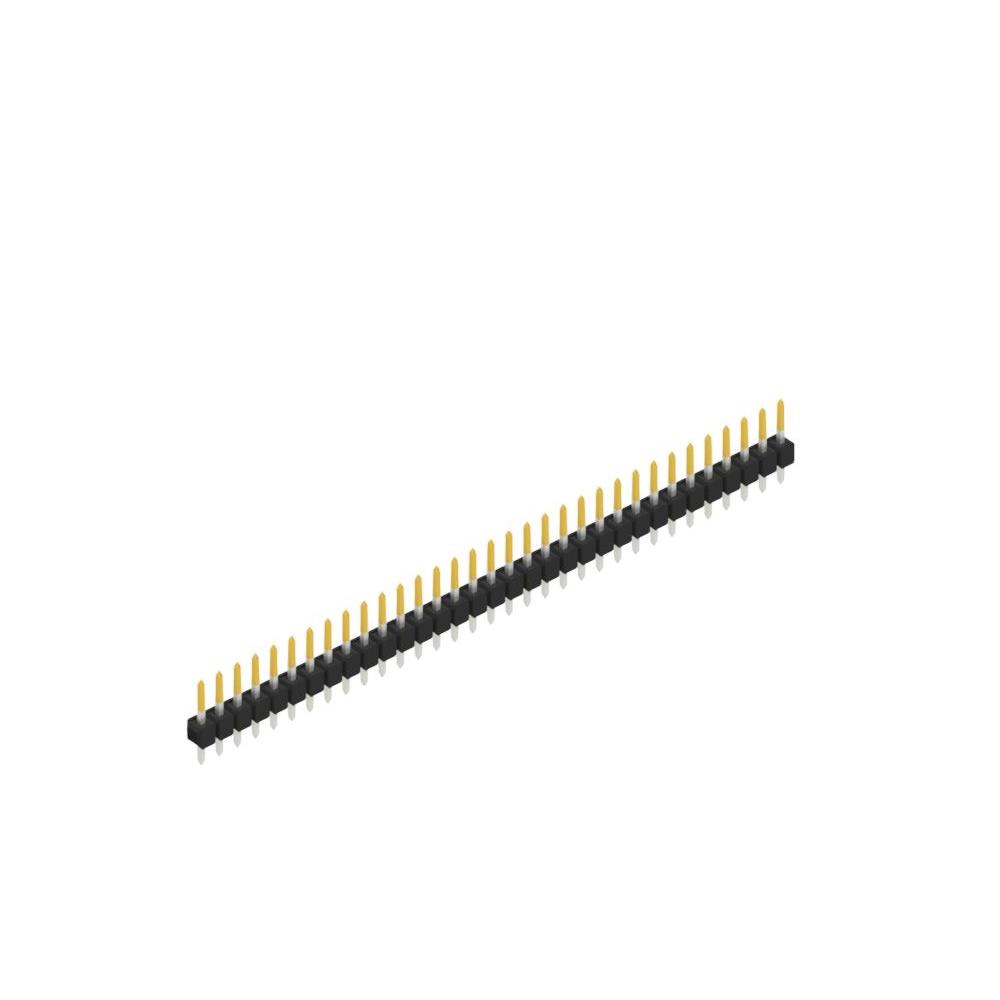

SL 11 112 33 S

$1.83

Description：ONE ROW, 0.635 MM
Series：SL 11 112
Mfr：Fischer Elektronik
Package：Bulk

SKU:8b6412888afc Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SL 11 112 33 S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 11 112 33 S

Description：ONE ROW, 0.635 MM
Series：SL 11 112
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：33
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.213" (5.40mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.441" (11.20mm)
Insulation Height：0.110" (2.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：157.5µin (4.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 11 112 33 S

SL 11 112 33 S

Headers, Male Pins Overview

The SL 11 112 33 S is a single-row pin header connector manufactured by Fischer Elektronik. It features 33 positions with a 0.100-inch (2.54 mm) mating pitch. Designed for through-hole mounting, the connector utilizes square male pins made of copper-tin alloy. The contacts are tin-plated to ensure reliable electrical connection. The housing is constructed from polyamide (PA46), providing structural integrity and insulation. This component is part of the SL 11 series, intended for standard board-to-board or cable-to-board interconnections in electronic assemblies.

Headers, Male Pins Feature Summary

Single-row configuration with 33 male pin positions
Through-hole soldering termination for secure PCB attachment
Tin-plated copper-tin contacts for corrosion resistance
Polyamide (PA46) insulating housing material

Headers, Male Pins Applications

General-purpose electronic circuit boards
Industrial control system interconnects
Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' aligns with the required mechanical profile and contact length specifications for the target application. Confirm that the through-hole mounting style matches the printed circuit board design. Ensure compatibility with mating female connectors regarding the 0.100-inch pitch and pin dimensions. Check regulatory compliance status if required for the end product.

Headers, Male Pins Selection Notes

Select this connector when a single-row, 33-position header is required for through-hole implementation. The 0.100-inch pitch suits standard density layouts. Consider the tin plating for general environments rather than high-corrosion settings. Evaluate the PA46 housing temperature ratings against operational requirements. Compare total contact length against mating depth constraints.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of rectangular connectors from Fischer Elektronik. The series offers various row counts and position options. The SL 11 designation indicates a specific form factor within their pin header lineup. These connectors are engineered for standard electronic manufacturing processes. The series supports diverse interconnection needs across multiple industries.
