SL 11 112 33 Z

Headers, Male Pins Overview

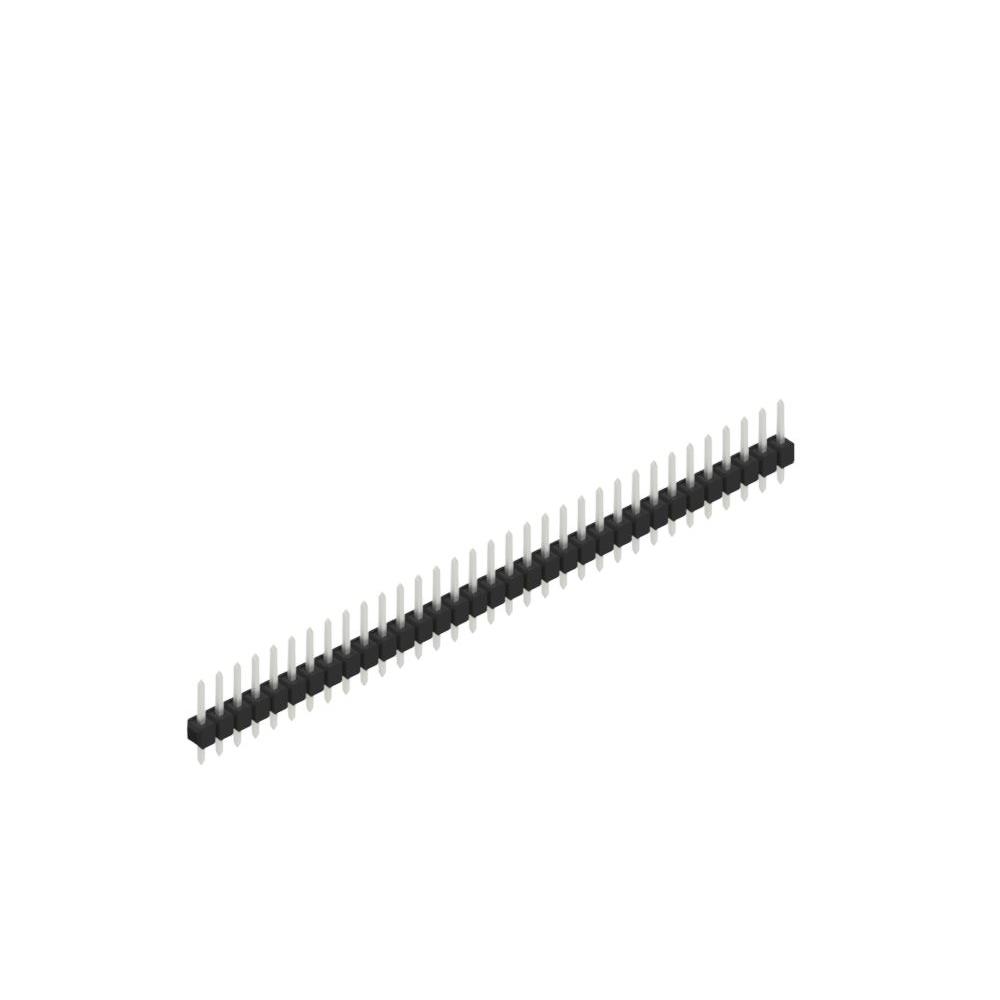

The SL 11 112 33 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 33 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper-tin alloy and finished with a tin plating layer measuring 157.5 µin (4.00 µm) in thickness. Key dimensional specifications include an overall contact length of 0.441 inches (11.20 mm), a mating contact length of 0.213 inches (5.40 mm), and a column contact length of 0.118 inches (3.00 mm). The insulator height is 0.110 inches (2.80 mm), utilizing polyamide (PA46) material.

Headers, Male Pins Feature Summary

• Single-row configuration with square-shaped male pins for reliable board-to-board or wire-to-board connections
• Through-hole terminal style ensuring secure mechanical attachment to PCB substrates
• Tin-plated copper-tin contacts providing corrosion resistance and stable electrical conductivity

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Consumer electronics assemblies needing standard pitch headers
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 112 33 Z against official Fischer Elektronik documentation to confirm compatibility. Ensure that the required 33-position count and 2.54 mm pitch align with the target PCB footprint. Check for any specific environmental ratings or RoHS compliance status directly from the manufacturer's current datasheet before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-pin male header is required for through-hole applications. The 2.54 mm pitch is standard for general-purpose electronics. Consider the tin plating thickness and PA46 insulation material if operating within specific thermal or chemical environments. Confirm that the straight orientation fits the assembly constraints without requiring angled connectors.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series of pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent 2.54 mm spacing and structural dimensions. The 'Z' suffix typically denotes specific plating or packaging variations within the manufacturer's cataloging system, distinguishing it from other variants like the 'S' series.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 33-position count, 2.54 mm pitch, single-row layout, and through-hole termination. Verify that alternative manufacturers offer identical pin dimensions and insulator heights to ensure proper mating with existing female counterparts. Cross-reference Fischer Elektronik's official replacement guide for approved equivalents.
