SL 11 112 34 G

Headers, Male Pins Overview

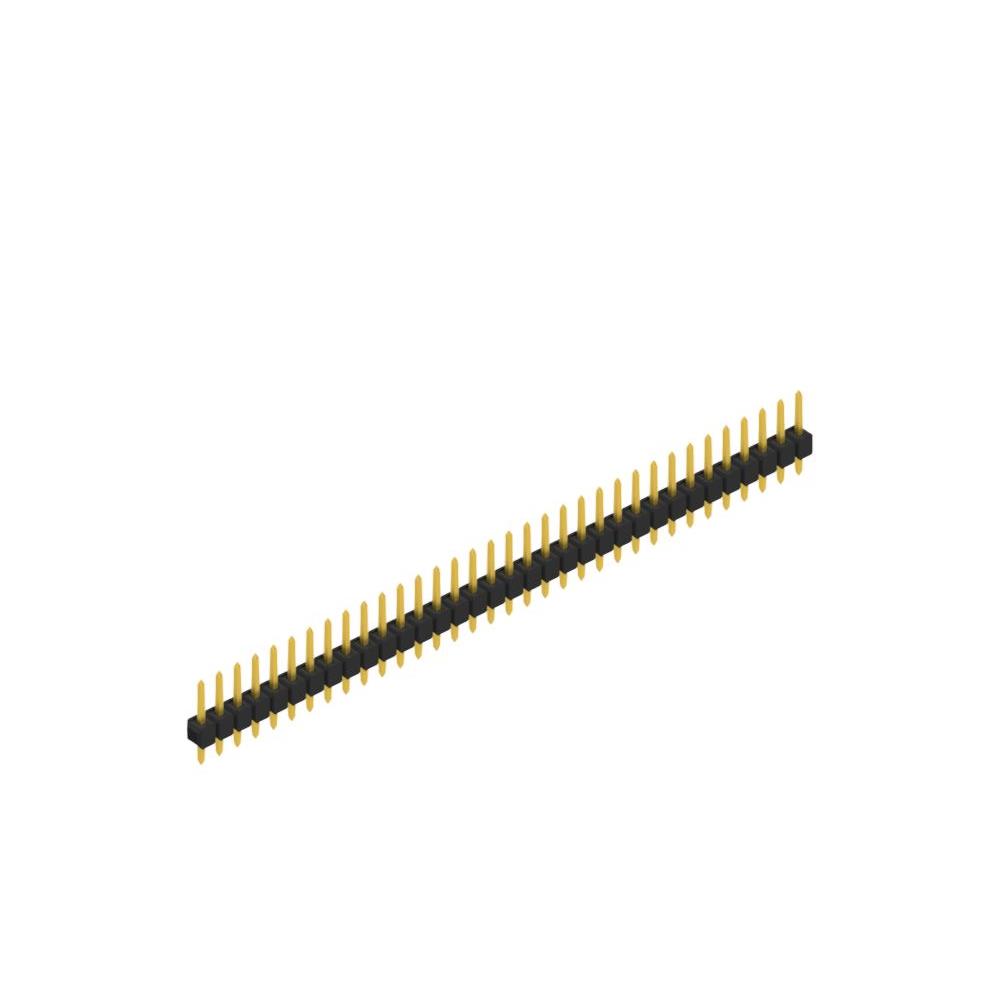

The SL 11 112 34 G is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 34 positions. Designed for through-hole mounting, the connector utilizes square-shaped pins with tin-plated contacts. The housing is constructed from polyamide (PA46), providing an insulation height of 0.110 inches (2.80 mm). The total contact length measures 0.441 inches (11.20 mm), with a mating contact length of 0.213 inches (5.40 mm) and a column contact length of 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections.
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards.
• Polyamide insulation material provides structural stability and electrical isolation.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable signal transmission.
• Industrial control systems utilizing standard pin headers.
• Consumer electronics manufacturing involving modular interconnects.

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 34-position count and single-row layout. Confirm that the tin-plated contact finish aligns with the intended environmental conditions and soldering processes. Ensure the through-hole footprint on the target PCB corresponds to the specified dimensions and pin spacing to guarantee proper assembly and electrical continuity.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required. Consider the 34-position capacity for applications needing moderate channel density. Evaluate the tin-plated contacts against corrosion requirements and the PA46 housing for thermal resistance needs relative to the operating environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various position counts and row configurations. This specific model represents a high-density single-row option within the lineup, designed for robust connectivity in compact electronic designs.
