SL 11 112 34 Z

Headers, Male Pins Overview

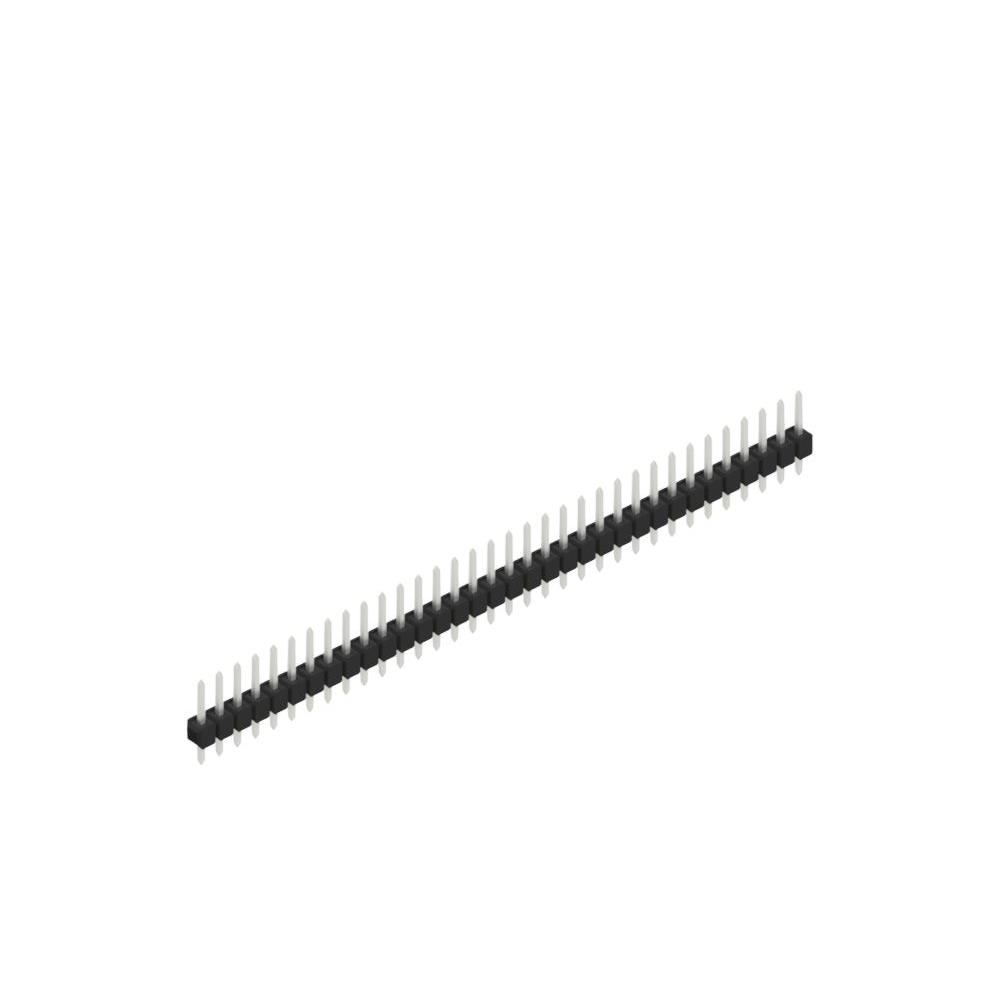

The SL 11 112 34 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 34 contacts with a 0.100-inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes copper-tin contact material with tin plating to ensure reliable electrical connections. Key dimensional specifications include an overall contact length of 0.441 inches (11.20 mm), a mating contact length of 0.213 inches (5.40 mm), and a post contact length of 0.118 inches (3.00 mm). The insulation height measures 0.110 inches (2.80 mm). The component belongs to the SL 11 112 series and is currently available in active production status.

Headers, Male Pins Feature Summary

• Single-row configuration with square-shaped male pins for standard board-to-board or cable interconnections.
• Through-hole terminal style ensures secure mechanical attachment to printed circuit boards.
• Tin-plated copper-tin contacts provide corrosion resistance and stable conductivity.
• Polyamide (PA46) insulation material offers thermal stability and mechanical durability.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable signal or power transmission
• Industrial control systems utilizing standard 2.54 mm spacing interfaces
• Prototyping and development boards for modular hardware integration

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 112 34 Z against official Fischer Elektronik documentation to confirm current availability and exact specifications. Ensure that the required contact count, pitch, and mounting style match your design requirements. Cross-reference datasheets for thermal and electrical ratings before finalizing procurement decisions to avoid compatibility issues.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 34 positions and 2.54 mm pitch is required. Consider the through-hole mounting method and tin-plated contacts for general applications. Evaluate the insulation material and operating temperature range to ensure compatibility with your assembly environment and manufacturing processes.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series from Fischer Elektronik, which specializes in precision-engineered connectors. The series offers various contact counts while maintaining consistent pitch and dimensional standards. These headers are designed for robust performance in industrial and commercial electronics, providing reliable interconnection solutions for PCB-based systems.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Verify compatibility with alternative headers based on identical pitch, contact count, and mounting specifications before substitution.
