SL 11 112 35 S

Headers, Male Pins Overview

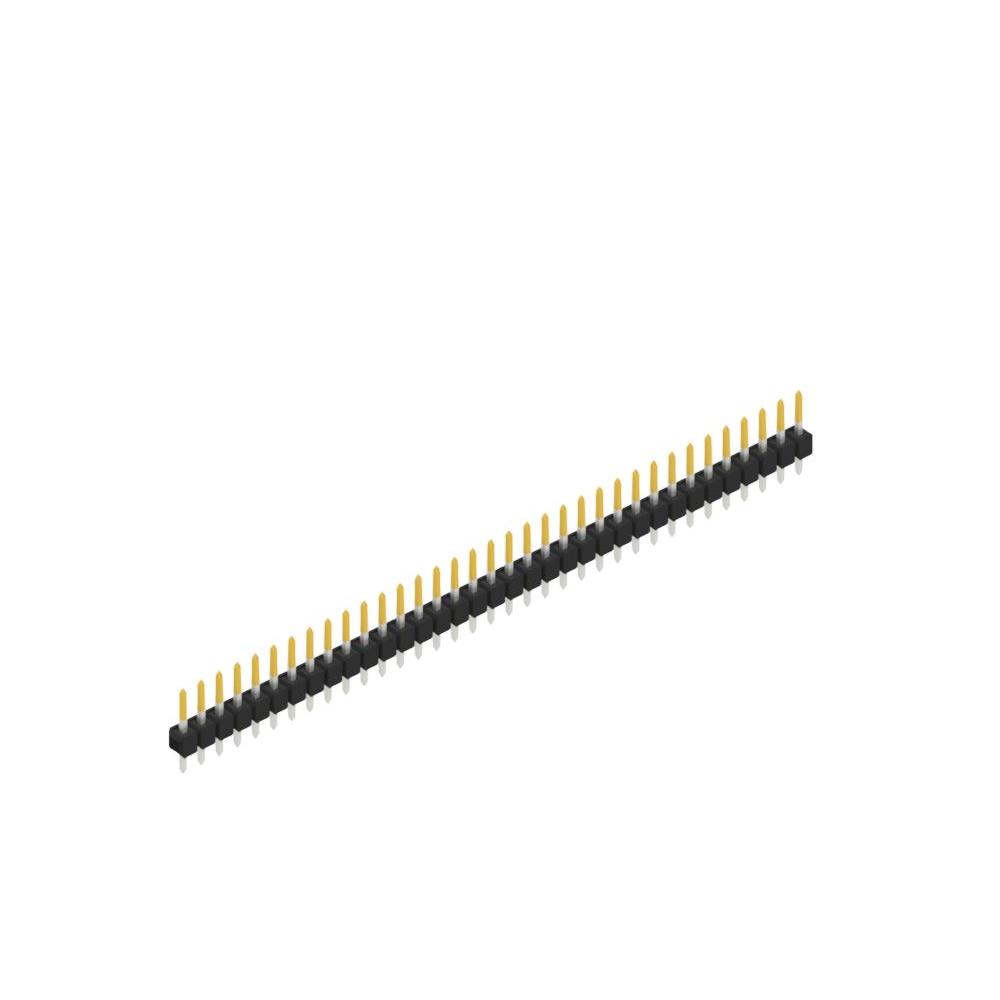

The SL 11 112 35 S is a single-row male pin header manufactured by Fischer Elektronik. It features 35 contacts with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting. The connector utilizes tin-plated copper-tin contacts and polyamide insulation. Key dimensions include a mating contact length of 0.213 inches (5.40 mm), a post length of 0.118 inches (3.00 mm), and an overall height of 0.441 inches (11.20 mm). The insulation height is 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Precision-engineered one-row configuration for reliable board-to-board or wire-to-board connections.
• Through-hole straight terminal style ensures secure PCB mounting.
• Tin-plated contacts provide corrosion resistance and stable conductivity.

Headers, Male Pins Applications

• Board-to-board interconnects in industrial electronics.
• Wire-to-board connections requiring high reliability.
• General-purpose electronic assemblies needing 35-position headers.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' confirms tin plating on both mating and post contacts. Ensure the required contact count matches the 35-position specification. Confirm that the through-hole straight orientation aligns with the target PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 35-contact single-row header is required. The 2.54 mm pitch is standard for general electronics. Verify that the operating temperature range and current ratings meet the system design specifications. Consider the straight orientation for vertical mounting applications.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series from Fischer Elektronik. The series offers various contact counts and plating options. The '35' indicates the number of positions. The 'S' suffix typically denotes tin plating. This series is designed for precision engineering in demanding environments.

Headers, Male Pins Replacement Considerations

Check Fischer Elektronik part numbers such as SL 11 112 35 Z for tin-plated alternatives or SL 11 112 35 G for gold-plated versions. Ensure identical pitch, row count, and mounting style when substituting. Verify contact material compatibility with mating connectors.
