SL 11 112 35 Z

Headers, Male Pins Overview

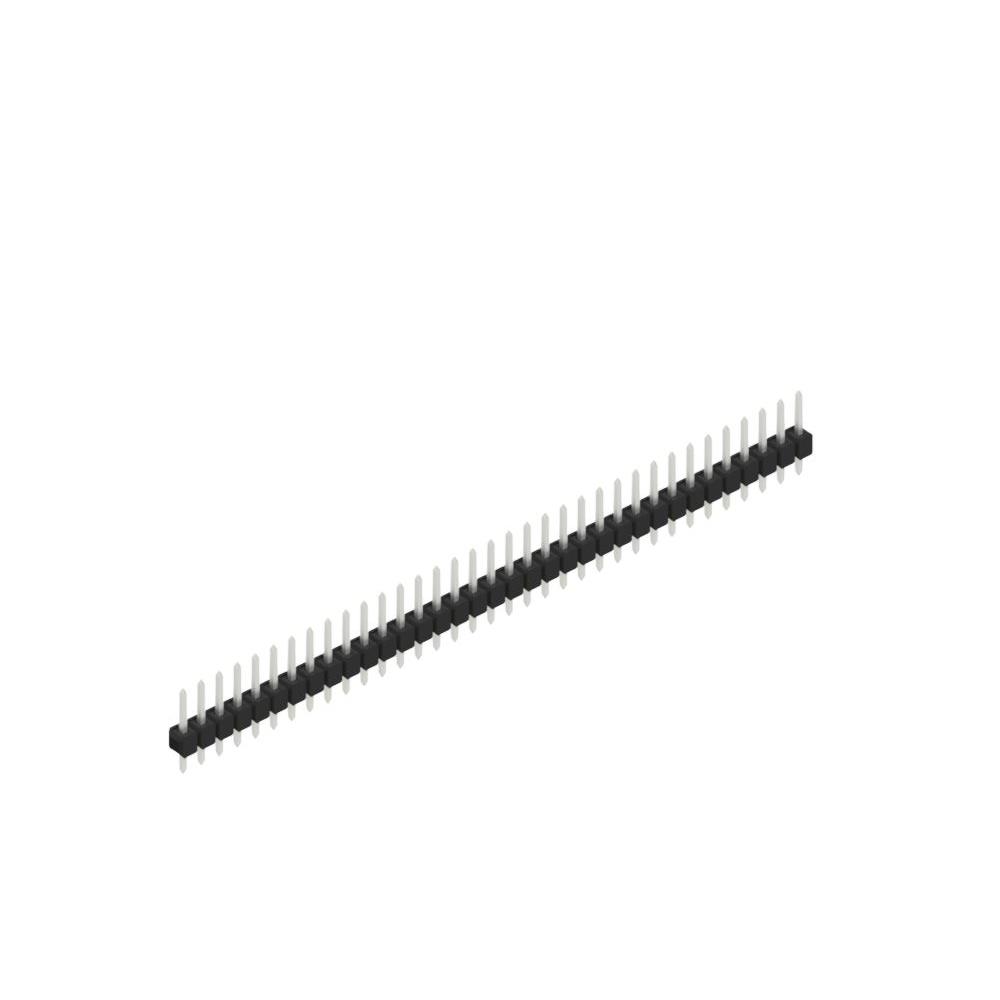

The SL 11 112 35 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm pitch and contains 35 positions. The contact length for mating is 0.213 inches (5.40 mm), while the post contact length is 0.118 inches (3.00 mm). The total contact length measures 0.441 inches (11.20 mm). The insulation height is 0.110 inches (2.80 mm). The connector utilizes square-shaped contacts made of copper-tin alloy with tin plating, offering a plating thickness of 157.5 µin (4.00 µm) on both mating and post surfaces.

Headers, Male Pins Feature Summary

• Single-row configuration designed for through-hole PCB mounting
• Square contact shape constructed from copper-tin alloy
• Selective tin plating applied to contact surfaces

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control panel wiring
• Signal transmission in modular systems

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to ensure correct pin count and plating specifications. Confirm that the required current and voltage ratings align with the application's operational demands before procurement. Cross-reference the datasheet for precise mechanical dimensions to guarantee compatibility with existing PCB layouts and mating connectors.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required for through-hole assembly. Consider the copper-tin alloy material and tin plating for standard conductivity needs. Ensure the 35-position count matches the design requirements. Evaluate the insulation height and contact lengths to verify spatial constraints within the target enclosure or assembly.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations for PCB interconnection. The SL 11 112 variant specifically denotes the dimensional and structural characteristics of this header family, providing standardized spacing and mounting profiles for reliable electrical connections in electronic assemblies.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with mating sockets based on the 0.635 mm pitch and square contact geometry. Consult manufacturer databases for direct equivalents if alternative sourcing is necessary.
