SL 11 112 36 G

Headers, Male Pins Overview

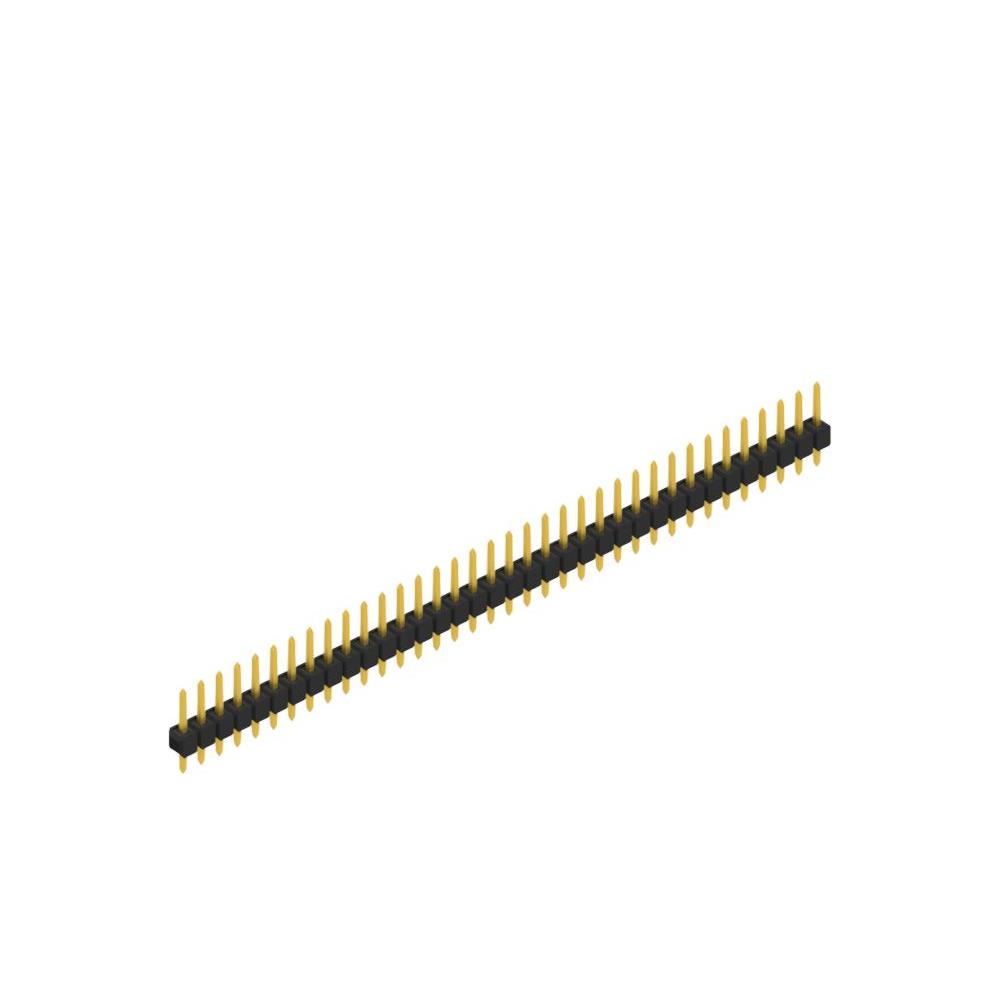

The SL 11 112 36 G is a single-row male pin header manufactured by Fischer Elektronik. It features 36 positions with a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the connector utilizes square contacts made of copper-tin alloy with tin plating. The assembly includes a polyamide (PA46) insulator and offers a total contact length of 0.441 inches (11.20 mm). The mating contact length measures 0.213 inches (5.40 mm), while the column contact length is 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row configuration with 36 male pins for board-to-board or wire-to-board connections.
• Through-hole straight mount design compatible with standard PCB layouts.
• Tin-plated copper-tin contacts ensure reliable electrical conductivity.
• Polyamide (PA46) insulation provides structural stability and thermal resistance.

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly
• Prototype development boards

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure the required contact length and insulator height match the target PCB stack-up. Confirm that the through-hole termination method aligns with the assembly process capabilities. Cross-reference the 36-position count with schematic requirements to prevent mismatched part numbers during procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-pin male header is required for rigid interconnection. The 2.54 mm pitch ensures compatibility with standard breadboards and ribbon cables. Consider the through-hole mounting style if surface-mount alternatives are unsuitable for mechanical stress requirements. Verify that the PA46 insulation material meets the operating temperature range of the intended application environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various position counts and row configurations. The SL 11 112 36 G specifically denotes a 36-position variant within this standardized lineup. Fischer Elektronik produces these connectors for robust industrial and commercial applications requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Direct substitutes include the SL 11 112 36 Z variant, which shares identical physical dimensions and pin count but may differ in plating specifications. Ensure any replacement maintains the 2.54 mm pitch and 36-position layout. Verify that alternative sources provide the same through-hole termination and PA46 insulation properties to guarantee mechanical fit.
