SL 11 112 36 S

Headers, Male Pins Overview

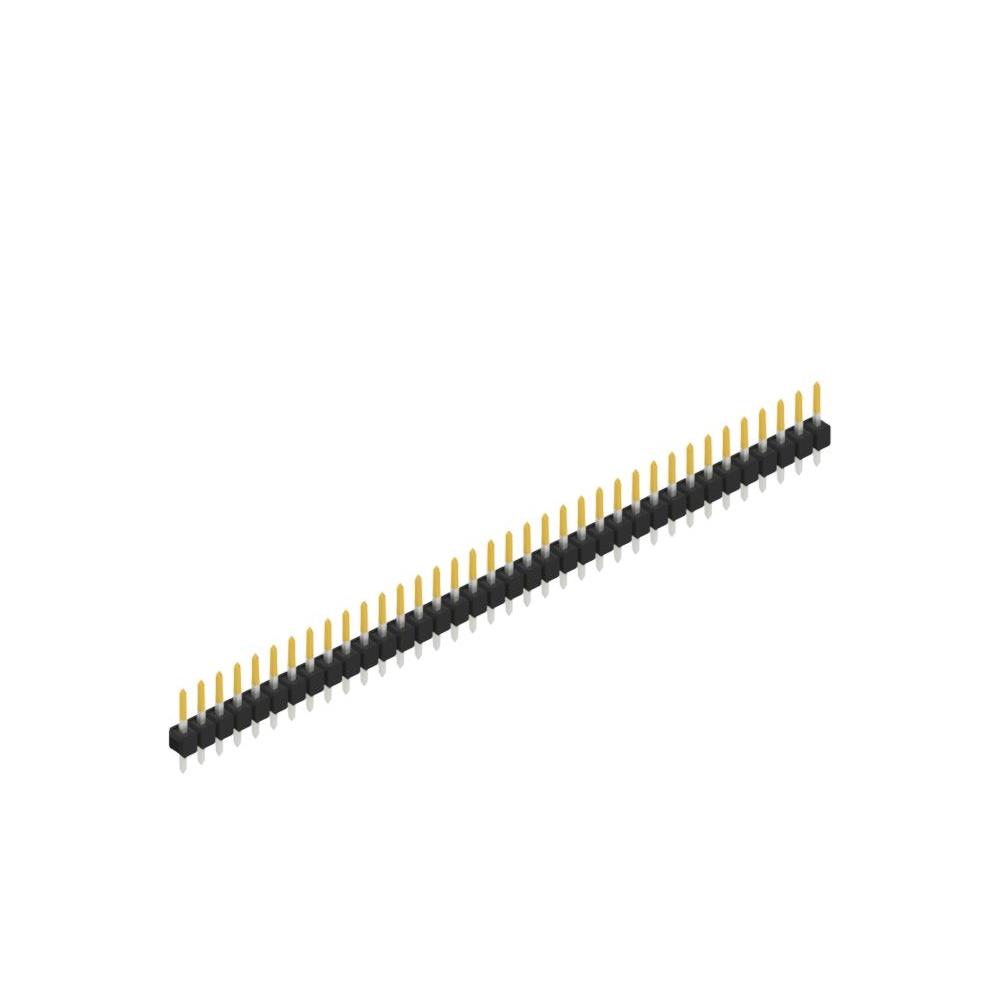

The SL 11 112 36 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 36 positions with a 0.100-inch (2.54 mm) pitch, designed for through-hole PCB mounting. The contacts are made of copper-tin alloy with tin plating, offering a mating contact length of 0.213 inches (5.40 mm) and a post length of 0.118 inches (3.00 mm). The total contact length measures 0.441 inches (11.20 mm), while the insulation height is 0.110 inches (2.80 mm). The connector utilizes polyamide (PA46) insulation material and square-shaped pins.

Headers, Male Pins Feature Summary

• Single-row configuration with 36 male pins for reliable board-to-board or wire-to-board connections
• Through-hole mounting design ensuring secure mechanical attachment to printed circuit boards
• Tin-plated copper-tin contacts providing corrosion resistance and stable electrical performance
• Polyamide (PA46) insulation material supporting standard operating temperature ranges

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring high-density interconnects
• Industrial control systems utilizing standard 2.54 mm pitch interfaces
• Consumer electronics manufacturing with through-hole component requirements
• Test and measurement equipment connecting modular sub-assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating on contacts, distinct from gold-plated variants like 'G'. Confirm the 36-position count matches the required circuit density. Ensure the through-hole straight form factor aligns with the target PCB layout. Check that the PA46 insulation rating meets the thermal requirements of the soldering process and operational environment. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-pin male header with 2.54 mm spacing is required for through-hole assembly. The tin-plated contacts are suitable for general applications where gold plating is not necessary. Consider the overall height and contact length to ensure compatibility with mating connectors and enclosure constraints. Verify that the polyamide insulation material withstands the intended thermal cycling and environmental conditions without degradation.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of pin headers from Fischer Elektronik. The series offers various position counts and contact finish options to suit different design needs. The SL 11 112 36 S specifically provides a mid-range pin count in a single-row format, balancing connectivity density with board space efficiency. It complements other variants in the series that may feature different row counts or plating materials.

Headers, Male Pins Replacement Considerations

Direct substitutes include the SL 11 112 36 Z, which shares identical mechanical dimensions but differs in contact plating specifications. Other series members with matching 36-position counts and 2.54 mm pitch may serve as functional alternatives if interface compatibility is confirmed. Always verify that any replacement maintains the same through-hole mounting style and insulation material properties.
