SL 11 112 36 Z

Headers, Male Pins Overview

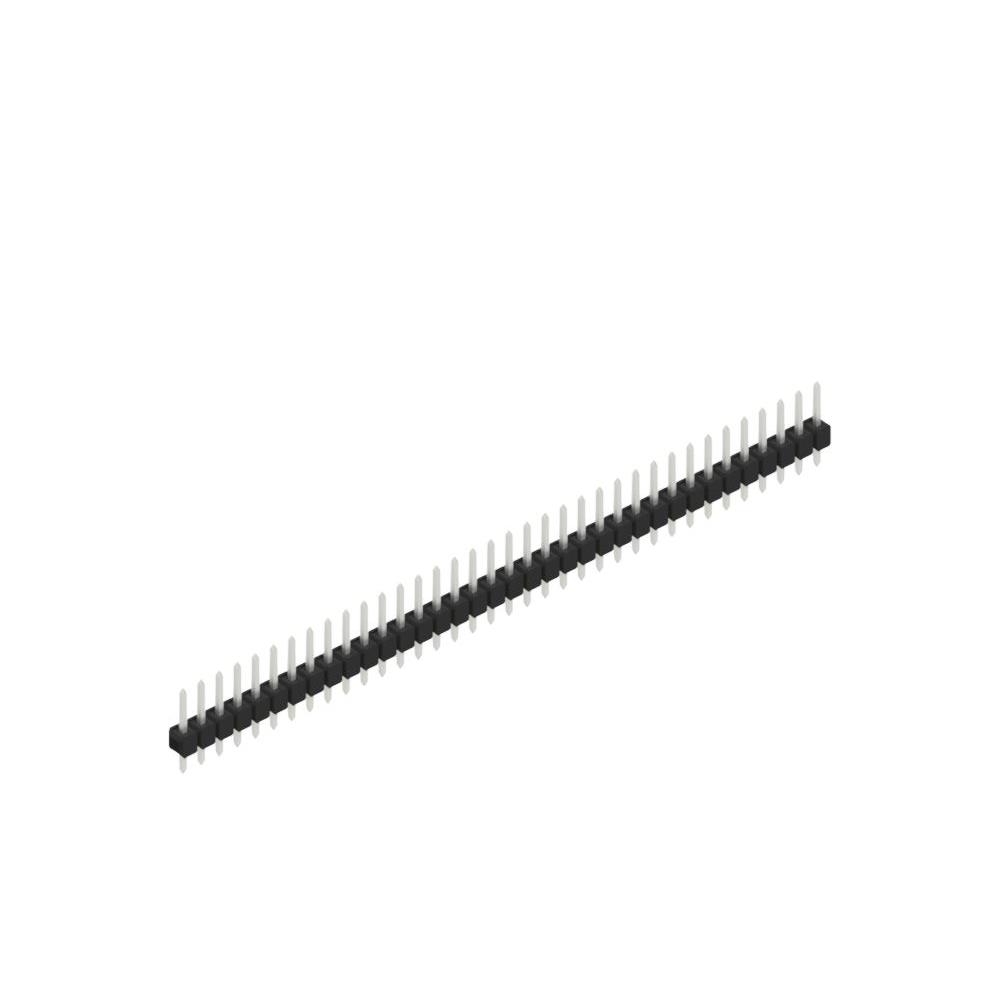

The SL 11 112 36 Z is a male pin header manufactured by Fischer Elektronik, designed for through-hole mounting. It features a single row with 36 contacts and a pitch of 0.100 inches (2.54 mm). The connector utilizes copper-tin contact material with a tin plating thickness of 157.5 µin (4.00 µm) on the mating surface. Insulation is provided by polyamide (PA46), also referred to as Nylon 4/6. The component operates within a temperature range of -40°C to 163°C and supports a current rating of 3 A. Total contact length measures 0.441 inches (11.20 mm), with a mating contact length of 0.213 inches (5.40 mm) and a post length of 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row straight pin header configuration for board-to-board or wire-to-board connections.
• Through-hole termination method ensuring secure mechanical attachment to printed circuit boards.
• Tin-plated copper-tin contacts providing reliable electrical conductivity and corrosion resistance.
• Polyamide insulation material offering stability across a wide operating temperature range.

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects.
• Consumer electronics assemblies utilizing standard 2.54 mm spacing.
• Test and measurement equipment interfaces.
• General-purpose PCB wiring applications.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's latest documentation to confirm exact plating specifications and packaging details. Ensure that the through-hole footprint matches the target PCB design requirements. Confirm compatibility with mating connectors regarding contact length and insulation height. Check for any recent updates to the material composition, such as the transition from PA46 to other nylon variants, if applicable to your supply chain standards.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-position male header with 2.54 mm pitch is required. Consider the 3 A current rating and -40°C to 163°C temperature range for environmental suitability. The straight orientation and through-hole termination dictate the assembly process. Verify that the total height and insulation material meet the spatial and chemical resistance constraints of the application environment compared to alternative series like SL 11 124.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of male headers from Fischer Elektronik. The series offers various contact counts and configurations, all maintaining the 2.54 mm pitch standard. The SL 11 112 36 Z specifically denotes the 36-contact variant in the one-row format. Related parts in the family include different contact counts and potentially different suffixes indicating variations in packaging or minor physical attributes, but all share the core structural and electrical characteristics of the SL 11 112 line.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 36-pin count, 2.54 mm pitch, single-row layout, and through-hole termination. Fischer Elektronik parts with identical series codes and contact numbers are primary candidates. Other manufacturers producing generic 2.54 mm male headers may serve as alternatives if current ratings and temperature ranges are equivalent. Verify that mating connector dimensions align with the specified contact lengths to ensure proper engagement.
