SL 11 112 5 S

Headers, Male Pins Overview

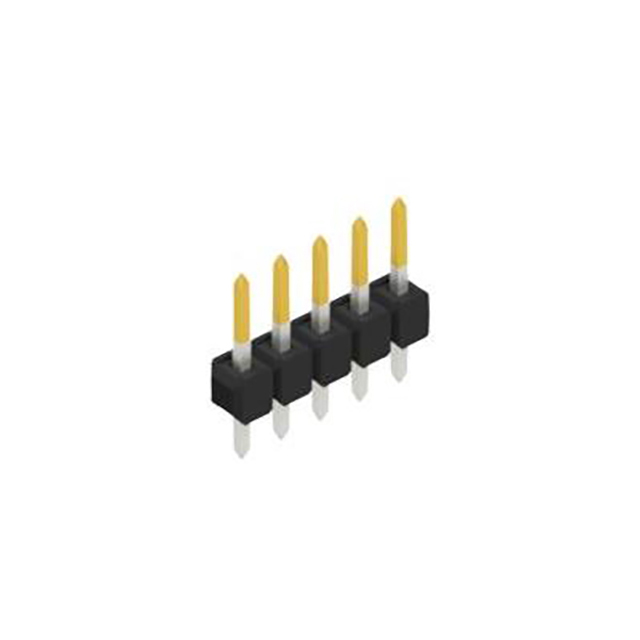

The SL 11 112 5 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains five contacts. The connector utilizes tin-plated copper-tin contacts with a square contact shape. The housing is constructed from glass-filled polyamide (PA46), rated UL 94 V-0, supporting an operating temperature range of -40°C to 163°C. It is designed for through-hole mounting.

Headers, Male Pins Feature Summary

• Single-row male pin configuration with square contact geometry
• Tin-plated copper-tin contacts for reliable electrical connection
• Glass-filled PA46 insulation material ensuring thermal stability

Headers, Male Pins Applications

• General purpose PCB interconnections
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating socket connectors regarding pitch and row configuration. Check for RoHS compliance status if required by project regulations.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. Consider the 2.54 mm pitch standard for broad mating availability. Evaluate the thermal rating and insulation material properties against environmental conditions.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of board-to-board and wire-to-board connectors. The series offers various pole counts and configurations, providing standardized interconnection solutions for electronic assemblies requiring robust mechanical and electrical performance.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct cross-references or alternative series within the same product family that match the required pitch and contact count.
