SL 11 112 6 G

Headers, Male Pins Overview

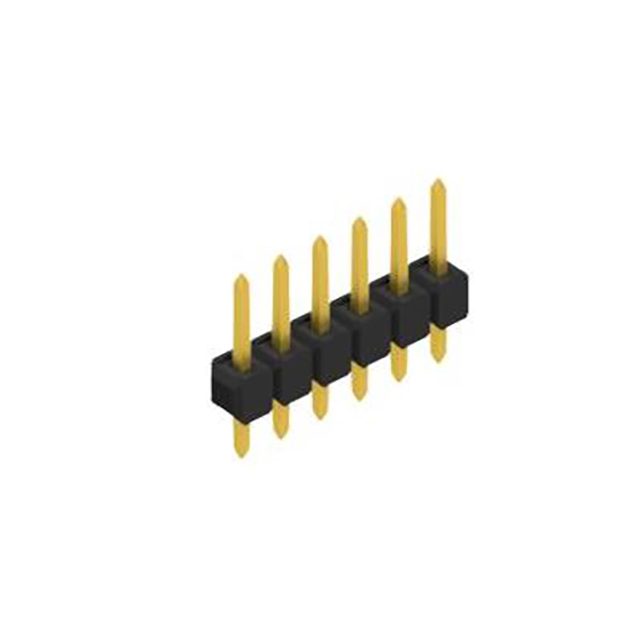

The SL 11 112 6 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with six positions and a pitch of 0.100 inches (2.54 mm). The contacts are gold-plated copper alloy, designed for through-hole mounting on printed circuit boards. This component provides reliable electrical interconnection in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration
• Gold-plated contact surfaces for corrosion resistance
• Through-hole mounting style for secure PCB attachment

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Prototype development boards
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating finish as per the manufacturer's datasheet. Confirm the contact count matches the application requirement of six positions. Ensure the through-hole footprint aligns with the target PCB design specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header with gold contacts is required. The 2.54 mm pitch ensures compatibility with standard breadboard and prototyping systems. Consider the mechanical stability provided by the through-hole mounting method for applications requiring robust physical connections.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from one to thirty-six positions. The SL 11 112 6 G specifically represents the six-position variant within this standardized lineup of rectangular connectors.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers with identical pitch and contact count but different plating options. Cross-reference with generic 2.54 mm single-row male headers if brand-specific sourcing is not mandatory, ensuring mechanical dimensions match.
