SL 11 112 6 S

Headers, Male Pins Overview

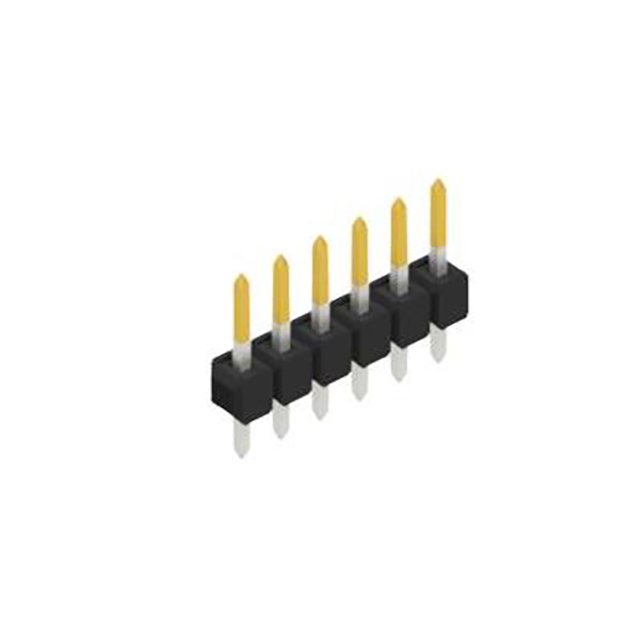

The SL 11 112 6 S is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) contact pitch and contains six positions. Designed for through-hole mounting, the connector utilizes square-shaped contacts with tin plating. The total contact length measures 0.441 inches (11.20 mm), comprising a mating length of 0.213 inches (5.40 mm) and a column length of 0.118 inches (3.00 mm). The insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row configuration with six through-hole male pins.
• Square contact shape with tin surface treatment for reliable connection.
• Polyamide (PA46) insulation material ensuring structural integrity.

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General PCB header applications

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's current datasheet to confirm exact plating specifications and material grades. Ensure the ordering part number matches the required contact count and row configuration. Cross-reference the package type as bulk to align with handling requirements. Confirm availability status directly with Fischer Elektronik or authorized distributors before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a single-row, six-position male header with a 2.54 mm pitch is required. The through-hole design suits standard PCB fabrication processes. Consider the tin-plated contacts for general-purpose conductivity. Verify that the 2.80 mm insulation height fits within the mechanical constraints of the assembly. This series offers various contact counts, so ensure the six-position variant meets the circuit density needs.

Headers, Male Pins Part Context

The SL 11 112 6 S belongs to the SL 11 series of PCB connectors from Fischer Elektronik. This series provides male headers in varying contact counts, ranging from two to thirty-six positions. The components are designed for straight, through-hole mounting on printed circuit boards. The series maintains consistent dimensional standards across different pin counts, facilitating standardized design integration.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and single-row geometry. Verify that alternative parts match the six-contact requirement and through-hole termination style. Ensure the replacement maintains the same insulation material and contact plating characteristics for equivalent performance.
