SL 11 112 6 Z

Headers, Male Pins Overview

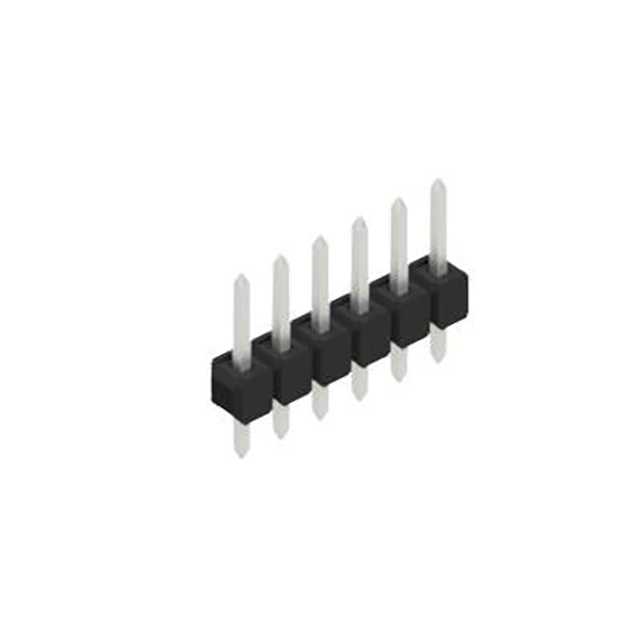

The SL 11 112 6 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains six contacts arranged in one row. The connector utilizes through-hole termination for secure PCB mounting. Contact materials consist of copper alloy with tin plating to ensure reliable conductivity. The housing is constructed from polyamide (PA46), providing thermal stability and mechanical strength. This component is designed for board-to-board or wire-to-board interconnections requiring standard spacing.

Headers, Male Pins Feature Summary

• Single-row configuration with straight orientation for standard PCB layouts
• Through-hole termination ensures robust mechanical fixation on the circuit board
• Tin-plated contacts provide corrosion resistance and stable electrical performance
• Polyamide insulation offers high heat resistance and dielectric strength

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring low-current signal transmission
• Prototype development boards for rapid testing and verification
• Industrial control modules utilizing standard 2.54 mm spacing interfaces
• Consumer electronics internal connections for peripheral integration

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the required six positions before ordering. Confirm that the through-hole footprint aligns with the target PCB design specifications. Ensure the operating temperature range of the polyamide housing meets the environmental conditions of the intended application. Check for any specific RoHS compliance requirements if applicable to the manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a single-row, six-position male header is required. The 2.54 mm pitch is standard for many commercial connectors. Consider the current rating and voltage limits relative to the system design. Evaluate the mechanical height constraints to ensure proper clearance above the PCB surface after soldering.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik headers. The series offers various contact counts while maintaining consistent pitch and housing dimensions. These components are widely used in industrial and commercial electronics for reliable interconnection solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row layout, and six-contact configuration. Verify that alternative manufacturers offer compatible through-hole pins and similar insulating material properties. Cross-reference mechanical drawings to ensure identical mounting hole patterns and overall height specifications.
