SL 11 112 7 G

Headers, Male Pins Overview

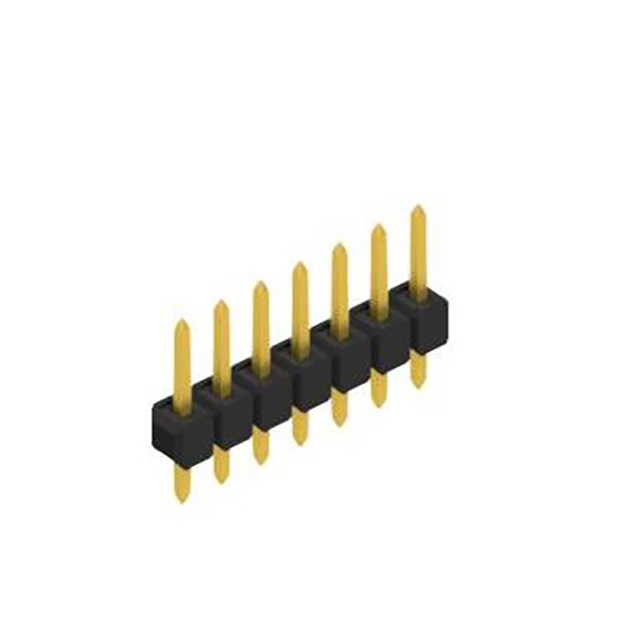

The SL 11 112 7 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains seven contacts designed for through-hole mounting on printed circuit boards. The connector utilizes a black polyamide (PA46) insulator and tin-plated copper alloy terminals to ensure reliable electrical connectivity. This component belongs to the SL 11 series, which provides standardized dimensions for board-to-board or cable-to-board interconnections in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row configuration with seven positions for standard signal routing
• Through-hole termination method ensures secure mechanical attachment to PCBs
• Tin-plated contacts provide corrosion resistance and solderability
• Black PA46 insulation offers thermal stability and mechanical durability

Headers, Male Pins Applications

• General-purpose electronic equipment interconnections
• Industrial control panel wiring
• Consumer electronics assembly
• Test and measurement device prototyping

Headers, Male Pins Procurement Notes

Verify the exact contact count matches the model suffix '7' to ensure correct pin density. Confirm that the tin plating specification aligns with your soldering process requirements. Check that the through-hole footprint dimensions are compatible with your PCB design rules. Ensure the operating temperature range meets your environmental specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, seven-position male header is required for low-current signal applications. The 2.54 mm pitch is standard for most commercial PCB layouts. Consider the tin plating if lead-free soldering processes are used. Evaluate the mechanical height and insertion depth against available clearance in the final assembly design.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of pin headers. The series offers various pole counts and row configurations. The SL 11 designation indicates a specific form factor with defined mechanical constraints. Other variants in this series differ primarily in the number of contacts and plating options while maintaining consistent pitch and mounting characteristics.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical pitch and contact count. Generic 2.54 mm single-row male headers may serve as alternatives if mechanical dimensions match exactly. Verify that substitute parts maintain the same current rating and temperature performance specifications.
