SL 11 112 7 S

Headers, Male Pins Overview

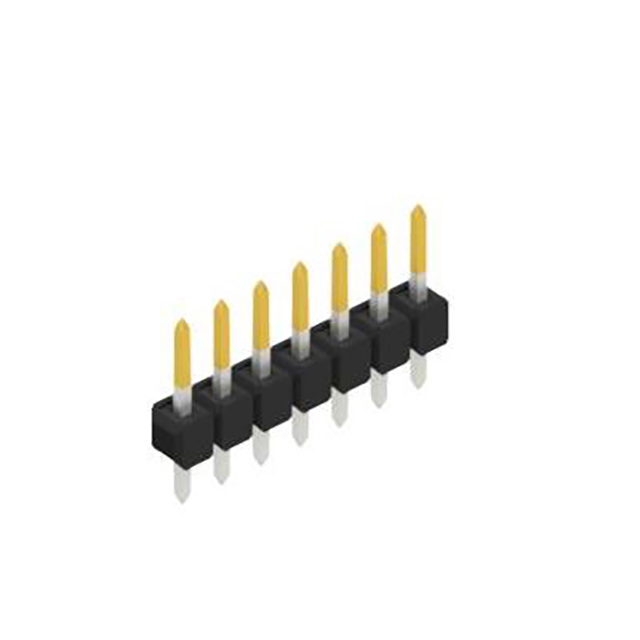

The SL 11 112 7 S is a male header connector manufactured by Fischer Elektronik. It features a single row of seven contacts with a 2.54 mm pitch. The connector utilizes through-hole mounting for secure PCB attachment. Contact surfaces are tin-plated to ensure reliable electrical conductivity and corrosion resistance. The housing is constructed from polyamide (PA46), providing mechanical stability and thermal endurance. This component is designed for board-to-board or wire-to-board interconnections in electronic assemblies requiring standard spacing.

Headers, Male Pins Feature Summary

• Single row configuration with seven contact positions
• Through-hole mounting technology for PCB integration
• Tin-plated contact surfaces for conductivity
• Polyamide insulation material for structural integrity

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly circuits

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating and material specifications. Ensure the pin count matches the required circuit design before procurement. Cross-reference the package dimensions with the target PCB footprint to guarantee mechanical compatibility during assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, seven-position male header is required for through-hole applications. The 2.54 mm pitch aligns with standard industry spacing requirements. Consider the tin-plated finish for general-purpose connectivity needs where gold plating is not strictly necessary for high-cycle mating.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts and pitch options. The SL 11 112 variant specifically denotes the housing style and row configuration. Different suffixes indicate variations in contact materials and plating types within the same mechanical form factor.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes with identical mechanical dimensions. Verify that alternative components maintain the 2.54 mm pitch and single-row layout. Ensure replacement parts support through-hole mounting and compatible contact plating specifications.
