SL 11 112 7 Z

Headers, Male Pins Overview

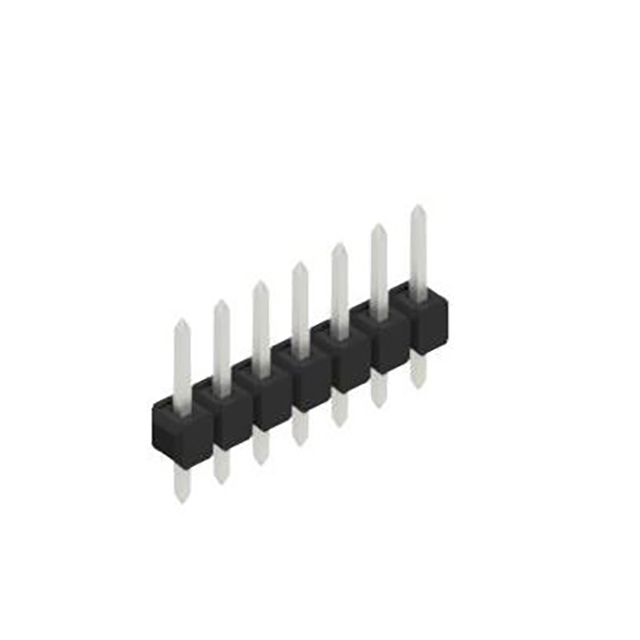

The SL 11 112 7 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and accommodates seven positions. Designed for through-hole mounting, the connector utilizes square pins with tin plating on both the mating and column contacts. The contact length measures 0.213 inches (5.40 mm) for mating and 0.118 inches (3.00 mm) for the column, resulting in an overall contact length of 0.441 inches (11.20 mm). The insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row configuration with 0.635 mm pitch for precise alignment.
• Through-hole mounting design for secure PCB attachment.
• Square pin shape with tin-plated copper-silver contacts.

Headers, Male Pins Applications

• General-purpose electronic interconnects.
• Industrial control system signal routing.
• Precision-engineered circuit board assemblies.

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 112 7 Z against official Fischer Elektronik documentation to confirm pin count and pitch specifications. Ensure compatibility with required through-hole mounting processes and check that the tin-plated contact material meets environmental compliance standards for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required. Consider the 0.635 mm spacing constraint and the need for through-hole assembly. Verify that the 7-position capacity aligns with circuit requirements and that the polyamide insulation material suits the operating temperature range.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series of PCB connectors from Fischer Elektronik. The series offers various position counts while maintaining consistent 0.635 mm pitch and structural dimensions. The SL 11 112 7 Z represents the seven-position variant within this standardized family of precision male headers designed for reliable electronic interconnections.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 7-position count, and through-hole mounting style. Verify pin shape, contact material, and insulation material compatibility before substitution.

Headers, Male Pins FAQ

What is the contact material for the SL 11 112 7 Z?

The contacts are made of copper-silver alloy with a tin plating finish.

Is the SL 11 112 7 Z suitable for surface mount applications?

No, this component is designed specifically for through-hole mounting.
