SL 11 112 8 G

Headers, Male Pins Overview

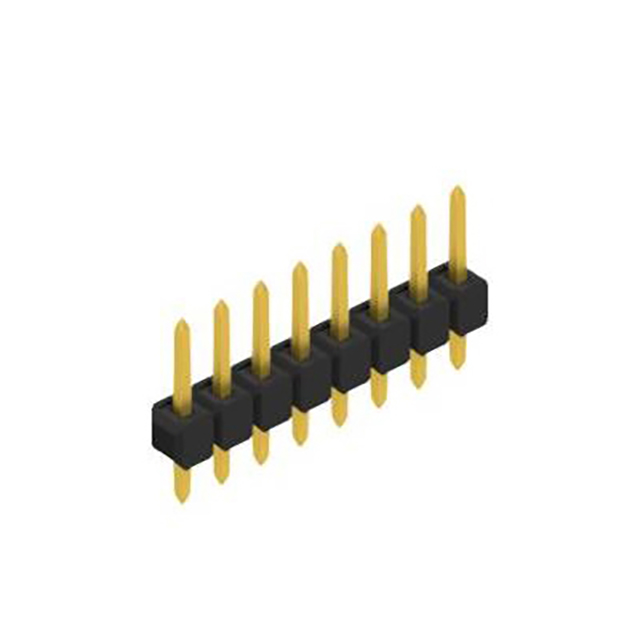

The SL 11 112 8 G is a male pin header connector from the Fischer Elektronik SL series. It features a single row of 8 contacts with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, it utilizes gold-plated contacts to ensure reliable signal transmission. The connector supports standard PCB assembly processes and provides secure board-to-board or wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact circuit integration
• Gold contact plating for enhanced corrosion resistance and conductivity
• Through-hole termination method for robust mechanical stability

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable signal paths
• Board-to-board interconnection in industrial control modules
• Prototype development and testing equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact material and plating thickness. Ensure the selected variant matches the required row count and pin quantity for the target application. Cross-reference the part number with official Fischer Elektronik documentation to avoid substitution errors due to minor designation changes.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required for low-current signal applications. Consider the 2.54 mm pitch compatibility with existing PCB footprints. Evaluate the through-hole mounting requirement against available surface-mount alternatives if space constraints exist. Confirm insulation material specifications for thermal resistance during soldering.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series, which offers a wide range of rectangular connectors. The SL 11 112 designation indicates a specific housing style within the male header category. The series is known for standardized dimensions and reliable performance in various electronic environments.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik replacement guide for direct substitutes. Verify that any alternative part maintains the same 2.54 mm pitch, 8-pin count, and single-row configuration. Ensure mechanical and electrical compatibility before implementation.
