SL 11 112 8 S

Headers, Male Pins Overview

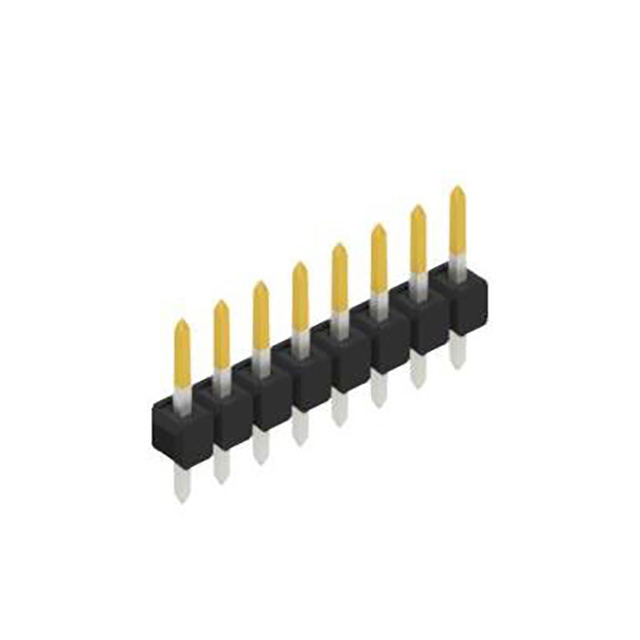

The SL 11 112 8 S is a single-row pin header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features eight positions with a 2.54 mm (0.100 inch) pitch. The contacts are tin-plated copper alloy pins with a mating contact length of 5.40 mm and a column length of 3.00 mm. The total contact length measures 11.20 mm, while the insulation height is 2.80 mm. The connector utilizes PA46 nylon insulation and supports operating temperatures from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row layout with square-shaped tin-plated pins
• PA46 nylon insulation material for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connection assemblies
• General electronic circuit prototyping

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' corresponds to the tin-plated finish as documented in official Fischer Elektronik datasheets. Confirm that the part number matches the exact eight-position requirement. Ensure compatibility with standard 2.54 mm pitch mating connectors. Check for any regional manufacturing variations or updated RoHS compliance statements prior to final procurement authorization.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header with eight contacts is required. The 2.54 mm pitch ensures compatibility with standard breadboard and ribbon cable systems. Consider the PA46 insulation for applications requiring higher thermal resistance compared to standard nylon variants. Verify that the 5.40 mm insertion depth meets the target PCB thickness constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of pin headers manufactured by Fischer Elektronik GmbH & Co. KG. The series offers various pole counts and plating options, including gold and tin finishes. The SL 11 112 8 S specifically denotes the eight-position variant with tin plating, providing a cost-effective solution for high-volume electronic assembly where moderate corrosion resistance is sufficient.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 112 series headers with identical pitch and row count but different plating, such as SL 11 112 8 G. Generic equivalents must match the 2.54 mm pitch, 8-position configuration, and through-hole mounting style to ensure mechanical and electrical interchangeability.
