SL 11 112 8 Z

Headers, Male Pins Overview

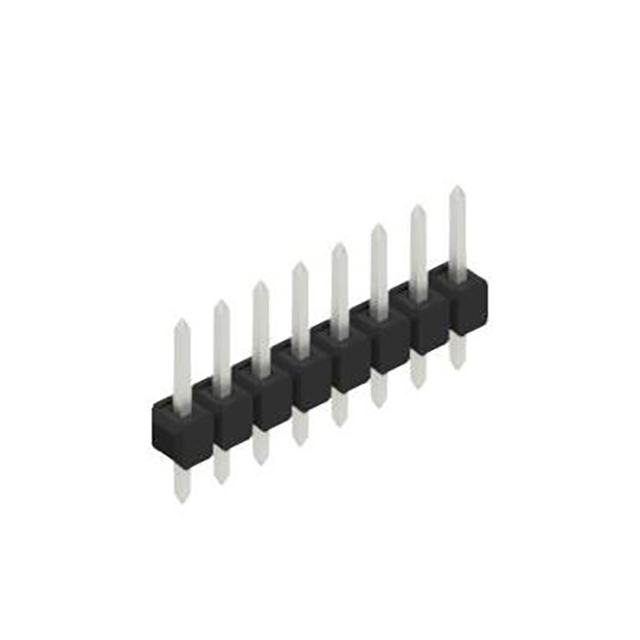

The Fischer Elektronik SL 11 112 8 Z is a single-row male pin header connector designed for through-hole PCB mounting. It features eight positions with a 0.100 inch (2.54 mm) pitch spacing. The contacts are constructed from copper alloy with tin plating, offering a mating contact length of 0.213 inches (5.40 mm) and a column length of 0.118 inches (3.00 mm). The overall contact length measures 0.441 inches (11.20 mm), while the insulation height is 0.110 inches (2.80 mm). The component utilizes square-shaped pins and polyamide (PA46) insulation material.

Headers, Male Pins Feature Summary

• Single-row configuration with square male pins for reliable mechanical engagement
• Through-hole termination method ensuring secure PCB attachment
• Tin-plated copper alloy contacts for corrosion resistance and conductivity

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the ordering part number matches the required pin count and row configuration. Cross-reference the insulation material grade and temperature rating with application requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required for through-hole applications. Consider the 0.110 inch insulation height and square pin shape for compatibility with mating connectors. Evaluate the tin plating finish against environmental exposure needs and soldering process temperatures to ensure long-term reliability in the target assembly.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series of pin headers manufactured by Fischer Elektronik. The series offers various pole counts while maintaining consistent 2.54 mm pitch and structural dimensions. The SL 11 112 8 Z specifically denotes an eight-position variant within this standardized product line, sharing common mechanical interfaces with other series members.

Headers, Male Pins Replacement Considerations

Compatible substitutes include SL 11 112 8 G and SL 11 112 30 Z from Fischer Elektronik, provided the pin count and electrical characteristics align with design requirements. Verify that alternative parts maintain identical pitch, insulation height, and termination type to ensure mechanical fit without redesign.
