SL 11 112 9 G

Headers, Male Pins Overview

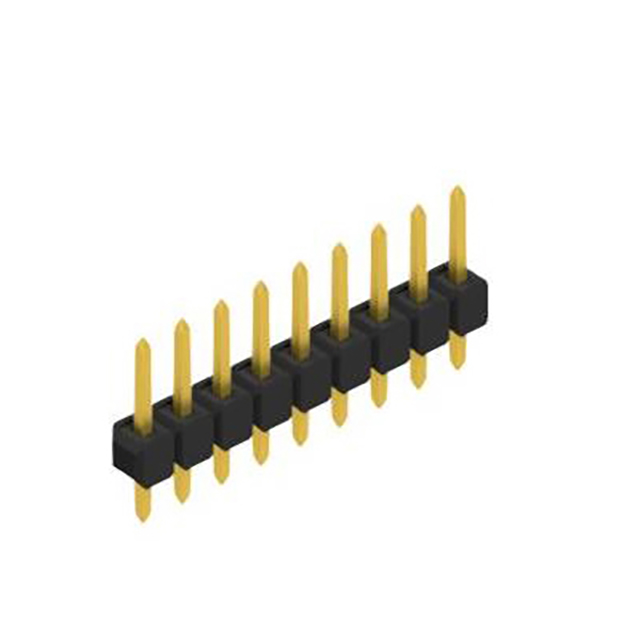

The SL 11 112 9 G is a male header connector from the Fischer Elektronik SL series. It features a single row of nine contacts with a 0.635 mm contact section and a 2.54 mm pitch. The unit utilizes through-hole termination for PCB mounting. Gold plating is applied to the contact surfaces to ensure reliable electrical performance. The connector design supports straight orientation, providing a compact solution for signal transmission in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct board insertion
• Gold-plated contact surfaces for enhanced conductivity
• Through-hole termination method for secure PCB attachment

Headers, Male Pins Applications

• General-purpose signal interconnection on printed circuit boards
• Prototype development requiring reliable male pin headers
• Electronic assembly modules needing standardized spacing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact count and plating specifications. Ensure the required pitch and row configuration match the target PCB footprint. Cross-reference the part number with official Fischer Elektronik documentation to validate availability and technical compliance before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required. Confirm that the 2.54 mm pitch aligns with the mating connector interface. Evaluate the through-hole mounting style against available surface-mount alternatives if space constraints exist. Ensure the nominal voltage and current ratings meet the application's electrical requirements.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male pin headers manufactured by Fischer Elektronik. The series offers various pole counts while maintaining consistent mechanical dimensions and electrical characteristics. The SL 11 112 9 G represents a specific variant within this family, distinguished by its nine-contact configuration and gold-plated finish.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching pitch and row count. Verify that alternative parts maintain the same through-hole termination and contact material specifications to ensure interchangeability without redesigning the PCB layout.
