SL 11 112 9 Z

Headers, Male Pins Overview

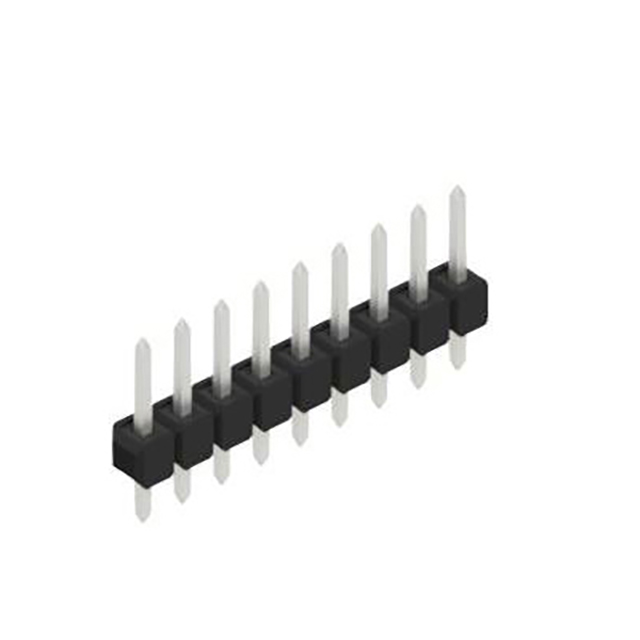

The SL 11 112 9 Z is a male header connector from Fischer Elektronik's SL 11 series. It features a single row with 9 positions and a 0.635 mm (0.025 inch) pitch. The contacts are tin-plated copper alloy pins designed for through-hole mounting. The insulating body is made of PA4.6 nylon, offering high thermal stability. This component supports a nominal current of 3 A and a nominal voltage of 250 V AC, with a test voltage of 2000 V. It operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Precision-engineered one-row male header configuration
• Tin-plated copper alloy contacts for reliable conductivity
• Thermally stable PA4.6 insulating body material
• Through-hole mounting design for secure PCB attachment

Headers, Male Pins Applications

• Industrial control systems requiring compact interconnects
• Consumer electronics assembly
• Telecommunications equipment
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's latest datasheet to confirm contact plating and packaging details. Ensure the pin count matches the required circuit design. Check RoHS compliance status if restricted substances are a concern. Confirm that the through-hole footprint aligns with the PCB layout specifications before procurement.

Headers, Male Pins Selection Notes

Select this model when a low-profile, single-row header with fine 0.635 mm pitch is required. Consider the 3 A current rating and 250 V voltage limit for circuit compatibility. Choose this part over higher-pitch alternatives for space-constrained applications. Verify that the tin plating meets corrosion resistance requirements for the operating environment.

Headers, Male Pins Part Context

The SL 11 112 9 Z belongs to Fischer Elektronik's SL 11 series of precision headers. This series is characterized by its fine 0.635 mm pitch and robust construction. The '112' designation typically indicates the series family, while '9' specifies the number of positions. The 'Z' suffix denotes specific finishing or packaging options defined by the manufacturer.
