SL 11 124 10 G

Headers, Male Pins Overview

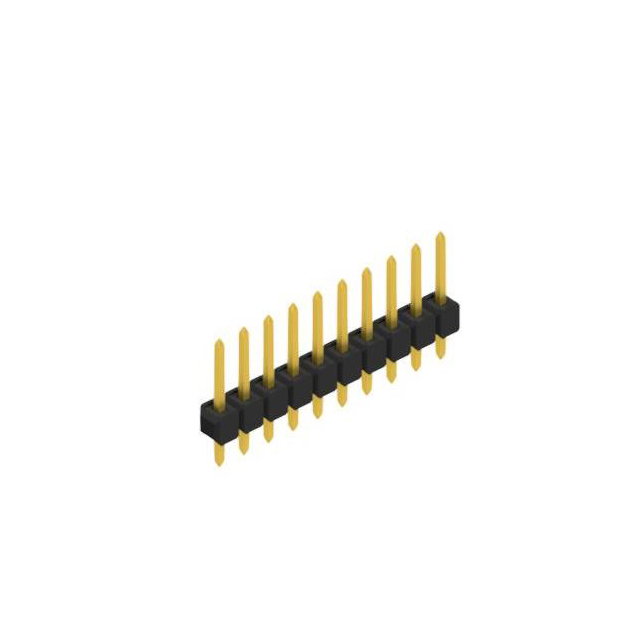

The SL 11 124 10 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 10 contacts. The connector utilizes through-hole mounting for secure PCB attachment. Contact materials consist of copper-tin alloy with selective gold plating to ensure reliable electrical performance. This component is designed for board-to-board or wire-to-board interconnections in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male header configuration with straight termination style
• Selective gold plating on contact surfaces for enhanced conductivity
• Thermoplastic insulation material rated for UL 94 V-0 flammability
• Through-hole mounting technology for robust mechanical stability

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly connections
• General-purpose electronic circuit prototyping
• Industrial control panel wiring interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold-plated contact finish as defined in the official datasheet. Confirm that the 10-contact count matches the design requirements. Ensure the through-hole package type aligns with the target PCB layout specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required. The selective gold plating offers superior corrosion resistance compared to standard tin finishes. Consider the straight form factor for standard vertical mounting applications. Verify compatibility with mating socket connectors regarding contact geometry and current carrying capacity limits.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components from Fischer Elektronik. The series is characterized by compact designs and reliable connection properties. The SL 11 124 variant specifically denotes the physical dimensions and contact arrangement within this product line, ensuring standardized interchangeability across compatible assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 10-position count, and single-row male header configuration. Verify that alternative parts offer comparable selective gold plating and UL 94 V-0 rated insulation. Ensure mechanical dimensions and mounting hole patterns are identical to maintain PCB footprint compatibility without redesign.
