SL 11 124 10 S

Headers, Male Pins Overview

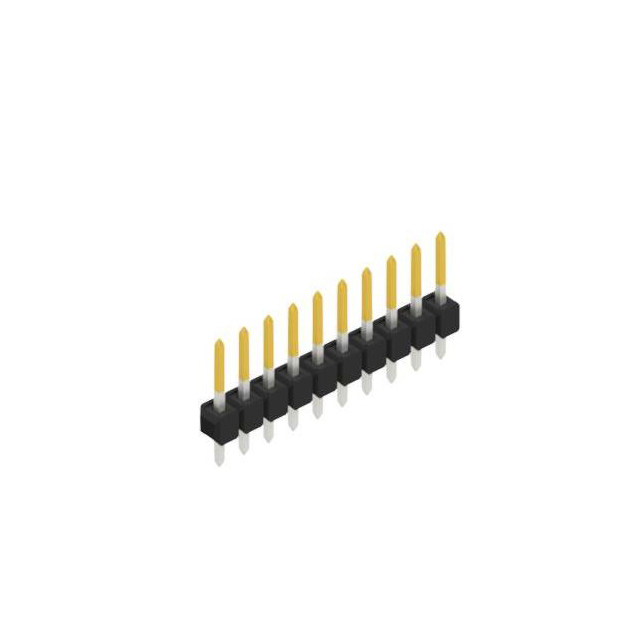

The SL 11 124 10 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch and contains 10 positions. Designed for through-hole mounting, the connector utilizes a polyamide PA4.6 glass-filled insulation body rated UL 94 V-0. The contacts are tin-plated copper with a nominal voltage of 250 V AC and a test voltage of 2000 V. It supports soldering at 260°C for 10 seconds and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Through-hole mounting design for secure PCB attachment
• Tin-plated contacts ensuring reliable conductivity
• High-temperature resistant polyamide insulation body

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' confirms tin plating rather than gold. Confirm the 10-position count matches the application requirements. Ensure the through-hole footprint aligns with the PCB layout. Check that the thermal resistance rating suits the soldering process used during manufacturing.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The tin finish offers cost-effectiveness compared to gold variants. The high operating temperature range makes it suitable for environments requiring thermal stability. Verify compatibility with mating female connectors regarding contact geometry and current capacity.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered PCB connectors from Fischer Elektronik. The series provides various position counts and contact finishes to suit different electrical needs. The SL 11 124 designation indicates the specific housing style and row configuration within the product line.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other Fischer Elektronik headers sharing the same pitch and mechanical dimensions if direct substitution is necessary.
