SL 11 124 10 Z

Headers, Male Pins Overview

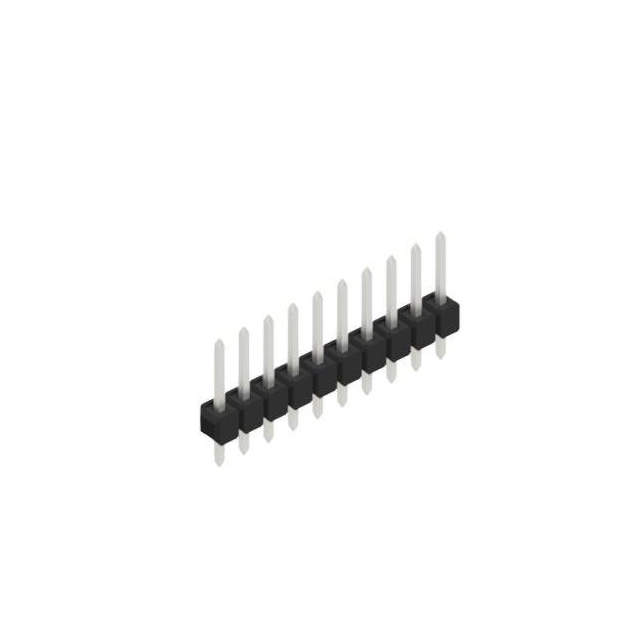

The SL 11 124 10 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and accommodates 10 positions. The connector utilizes tin-plated contacts with a rated voltage of 250 V and a rated current of 3 A. Designed for through-hole PCB mounting, it ensures reliable electrical connections in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Precision-engineered single-row male pin header design
• Tin-plated contact surfaces for corrosion resistance
• Rated for 250 V voltage and 3 A current capacity

Headers, Male Pins Applications

• General industrial electronics interconnects
• Compact consumer device circuit boards
• Automotive control module connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' corresponds to the tin-plated variant when ordering. Confirm that the 0.635 mm pitch matches the target PCB footprint requirements. Ensure the 10-position count aligns with the circuit design needs. Check datasheet specifications for thermal resistance during soldering processes.

Headers, Male Pins Selection Notes

Select this component for applications requiring a low-profile, single-row connection with a fine 0.635 mm pitch. Consider the 3 A current rating for power distribution lines. Evaluate the tin plating against environmental exposure requirements compared to gold-plated alternatives. Ensure mechanical stability meets the assembly vibration standards.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision PCB connectors from Fischer Elektronik. The series offers various position counts and pitch options. The SL 11 124 designation indicates a specific housing style within the product line. It complements matching socket connectors for complete system integration.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch and 10-position configuration. Verify compatible mating sockets with identical contact geometry. Amphenol ICC headers may serve as alternatives if pitch and current ratings align. Always validate mechanical dimensions before substitution.
