Headers, Male Pins Overview

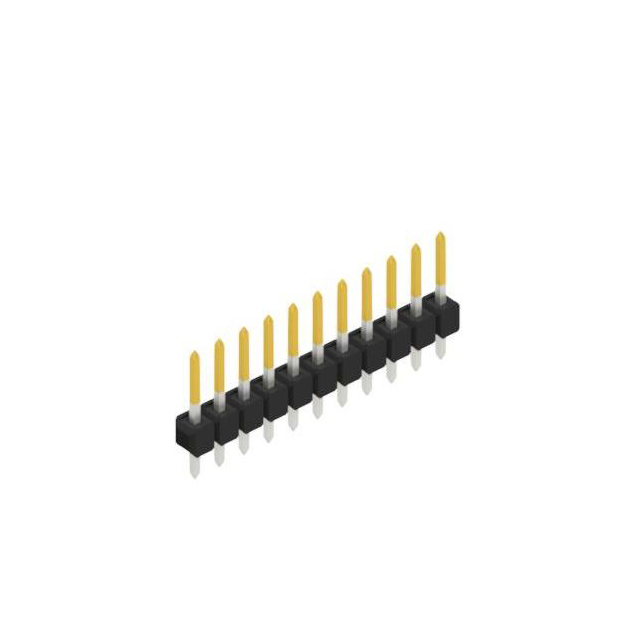

The SL 11 124 11 S is a single-row male pin header connector from the Fischer Elektronik SL 11 series. It features a 0.100-inch (2.54 mm) pitch and contains 11 positions. The connector utilizes square contact pins with a tin-plated finish, providing a mating contact length of 3.00 mm. Constructed with polyamide insulation, it is designed for through-hole PCB mounting. The component supports a reflow soldering temperature of 260°C for 10 seconds and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row configuration with square contact pins for secure mechanical retention
• Tin-plated contacts ensure reliable electrical conductivity and corrosion resistance
• Polyamide insulation material provides thermal stability up to 163°C
• Designed for standard through-hole printed circuit board assembly

Headers, Male Pins Applications

• General-purpose electronic interconnections
• Signal transmission in industrial control systems
• Prototype development and testing setups
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's official datasheet to confirm the exact contact plating specification. Ensure the part number matches the required pole count and row configuration. Confirm RoHS compliance status if restricted substances are a project requirement. Cross-reference the thermal rating with your assembly process capabilities.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The 11-position count suits applications needing moderate signal density. The tin finish is suitable for general use where gold plating is not mandatory. Consider the 3.00 mm insertion depth for PCB thickness compatibility. Evaluate the operating temperature range against environmental conditions.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered pin headers by Fischer Elektronik. The series offers various pole counts and configurations. The SL 11 124 designation indicates the specific width or model variant within the series. These connectors are characterized by their compact design and reliable performance in standard electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes with identical pitch and row count. Verify that alternative parts match the 2.54 mm spacing and 11-position requirement. Ensure compatible contact materials and insulation ratings before substitution.

Headers, Male Pins FAQ

What is the contact plating material for the SL 11 124 11 S?

The contacts are plated with tin.

What is the maximum operating temperature?

The maximum operating temperature is +163°C.

How many rows does this connector have?

It is a single-row connector.
