SL 11 124 11 Z

Headers, Male Pins Overview

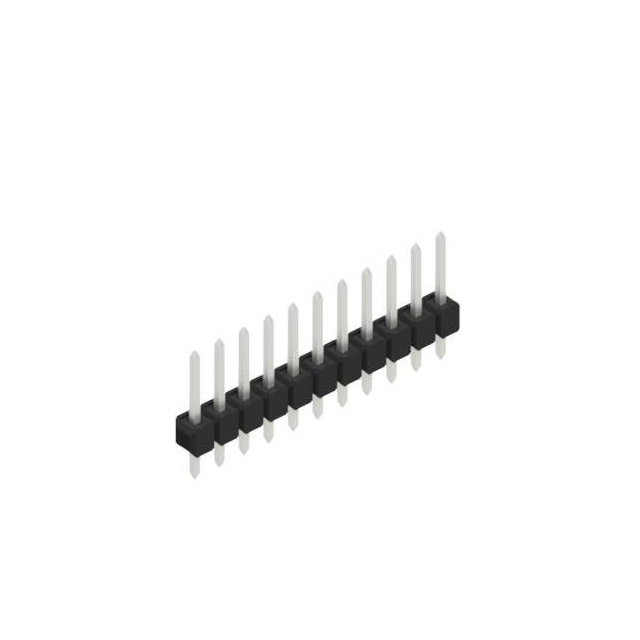

The SL 11 124 11 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and accommodates 11 positions. The component utilizes square contact shapes with tin-plated copper-silver contacts, offering a mating contact length of 0.213 inches (5.40 mm) and a post contact length of 0.118 inches (3.00 mm). Constructed with polyamide (PA46) insulation, it supports through-hole mounting. The total contact length measures 0.441 inches (11.20 mm), with an insulation height of 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board interconnections.
• Square contact shape designed for reliable mechanical retention.
• Tin-plated copper-silver contact material ensures corrosion resistance.

Headers, Male Pins Applications

• General electronic circuit assembly requiring 2.54 mm spacing.
• Prototyping boards and development kits.
• Industrial control modules utilizing standard pin headers.

Headers, Male Pins Procurement Notes

Verify the specific part number suffix 'Z' against manufacturer documentation to confirm plating specifications and compliance status. Ensure that the required current rating and voltage limits align with the application's electrical demands before procurement. Cross-reference the insulation material properties with environmental operating conditions.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 11 positions and 2.54 mm pitch is required. Consider the through-hole mounting style and PA46 insulation material for thermal stability. Evaluate the tin-plated contact finish against potential sulfidation risks in the operating environment compared to gold alternatives.

Headers, Male Pins Part Context

This component belongs to the SL 11 124 series of precision-engineered electronic connectors from Fischer Elektronik. The series is characterized by compact design and reliable connection performance. Variants within the series differ primarily in the number of positions and specific plating options, catering to diverse connectivity needs in electronics manufacturing.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and 11 positions. Verify mechanical dimensions and contact material compatibility when sourcing equivalents from other manufacturers to ensure proper fit and electrical performance.
