SL 11 124 12 G

Headers, Male Pins Overview

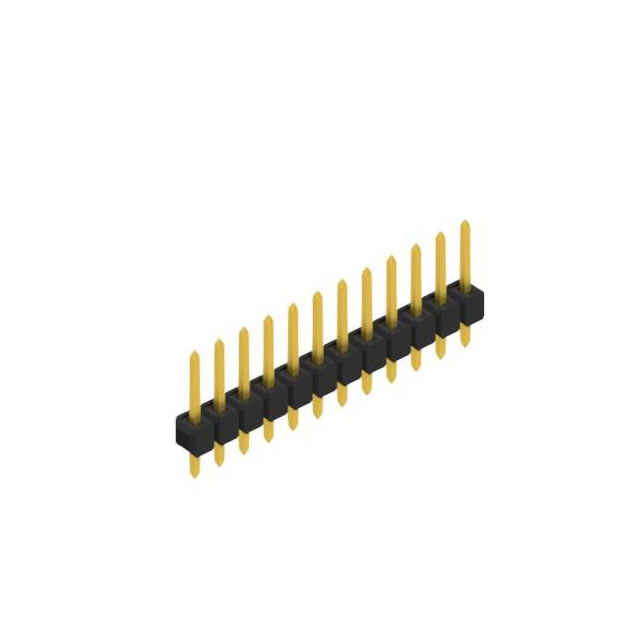

The SL 11 124 12 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features 12 positions with a 0.100-inch (2.54 mm) pitch, designed for through-hole PCB mounting. The contacts are gold-plated over nickel to ensure reliable conductivity and corrosion resistance. This component belongs to the SL 11 124 series, offering a compact form factor suitable for dense circuit board layouts.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard header applications
• Gold-plated contact surfaces for enhanced durability and signal integrity
• Through-hole solder termination method for secure mechanical attachment

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' indicates gold plating as per manufacturer documentation. Confirm that the 12-position count matches the required circuit design. Ensure the through-hole footprint aligns with the PCB layout specifications before ordering.

Headers, Male Pins Selection Notes

Select this model when a single-row, 12-pin header with gold contacts is required. Compare against other series if different pitch sizes or insulation heights are needed. Ensure the operating temperature range meets the application's environmental demands.

Headers, Male Pins Part Context

This part is part of the Fischer Elektronik SL 11 124 series, which provides various pin counts and termination options. It serves as a male connector counterpart to female sockets within the same ecosystem, facilitating modular electronic assemblies.
