SL 11 124 12 S

Headers, Male Pins Overview

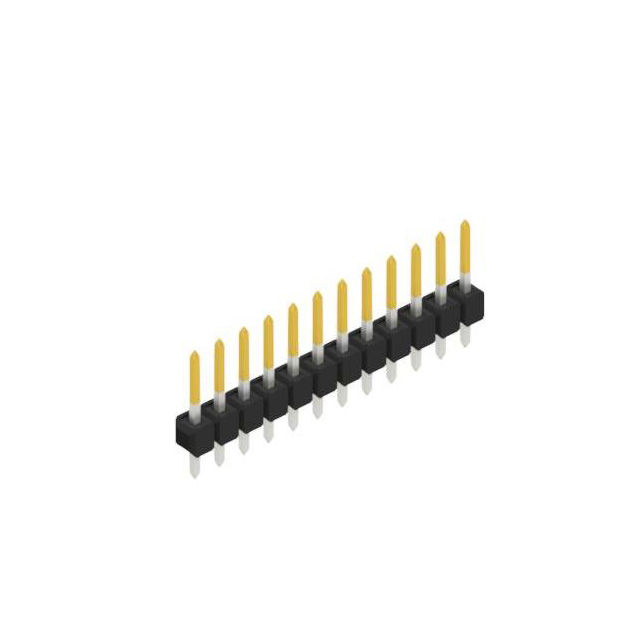

The Fischer Elektronik SL 11 124 12 S is a single-row male pin header connector designed for through-hole PCB mounting. It features 12 positions with a 0.100 inch (2.54 mm) pitch. The contacts are made of copper-tin alloy with tin plating, offering a mating contact length of 3.00 mm and a column contact length of 1.18 inches. The insulator is constructed from polyamide (PA46), providing an insulation height of 0.110 inches. This component is currently in production status.

Headers, Male Pins Feature Summary

• Single row configuration for compact board-to-board or wire-to-board connections
• Through-hole termination method for secure PCB mounting
• Tin-plated copper-tin contacts for reliable conductivity

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates selective gold plating if required by your design specifications, as datasheets for similar SL 11 series parts often distinguish between 'S' (selective gold) and 'Z' (tin) finishes. Confirm that the 12-position count matches your footprint requirements. Ensure the 2.54 mm pitch aligns with your mating connector. Check for RoHS compliance status on the official manufacturer sheet before finalizing procurement.

Headers, Male Pins Selection Notes

Select this part when a single-row, 12-pin through-hole header is needed. The 2.54 mm pitch is standard for general-purpose applications. Consider the PA46 insulation material for thermal stability. Compare contact lengths against mating plug depth to ensure proper engagement. Verify that the current rating and voltage specifications meet circuit demands, typically derived from the broader SL 11 series documentation.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series of pin headers. The series offers various position counts and pitch options. The SL 11 124 variant specifically denotes the 2.54 mm pitch family. The '12' indicates the number of positions. The 'S' suffix typically refers to the contact finish type in this manufacturer's nomenclature, distinguishing it from fully tin-plated alternatives.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include other position variants like SL 11 124 2 S or SL 11 124 36 S. Cross-manufacturer replacements require matching the 2.54 mm pitch, 12 positions, single-row layout, and through-hole termination style. Verify that the replacement part shares the same insulation material and contact plating specifications to ensure mechanical and electrical compatibility.
