SL 11 124 12 Z

Headers, Male Pins Overview

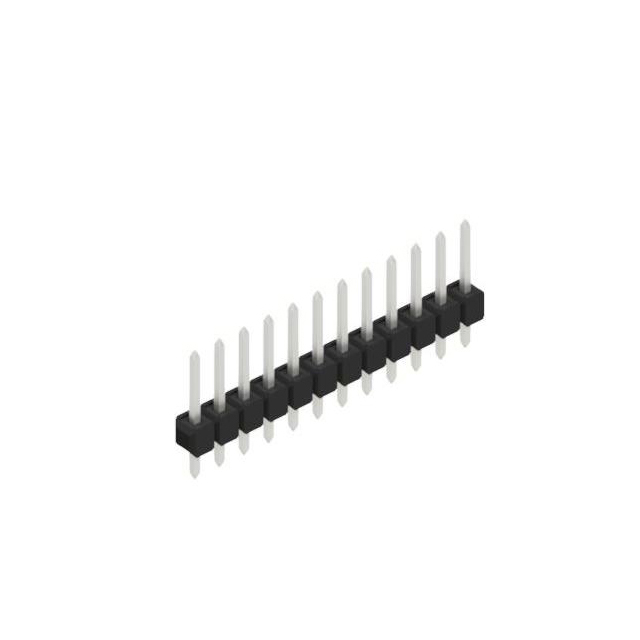

The SL 11 124 12 Z is a single-row pin header connector manufactured by Fischer Elektronik. It features 12 positions with a 0.100-inch (2.54 mm) pitch. The connector utilizes tin-plated contacts and is designed for through-hole mounting on printed circuit boards. The housing is constructed from polyamide (PA46), providing mechanical stability and electrical insulation. This component belongs to the SL 11 series, which is engineered for precision electronic interconnections.

Headers, Male Pins Feature Summary

• Single-row configuration for compact PCB layout integration
• Tin-plated contact surfaces for reliable conductivity
• Polyamide housing material ensuring thermal stability

Headers, Male Pins Applications

• General industrial electronics assembly
• Automotive control unit interconnections
• Telecommunications equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against official Fischer Elektronik documentation to confirm plating specifications and material composition. Ensure the required current rating of 3 A and voltage rating of 250 V align with the target application's electrical requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch header is required for low-to-medium density connections. Consider the operating temperature range of -40°C to +163°C for environmental suitability. Evaluate the 3 A rated current capacity against the load requirements of the connected circuitry.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of pin headers. The series is characterized by precision engineering and a 2.54 mm pitch. The SL 11 124 variant specifically denotes a straight pin header design, suitable for standard vertical mounting applications in electronic assemblies requiring robust mechanical retention.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with matching pin counts and pitch. Cross-manufacturer replacements must match the 2.54 mm spacing and single-row form factor. Verify that alternative components meet the same UL94 V-0 flammability rating and temperature specifications.
