SL 11 124 13 S

Headers, Male Pins Overview

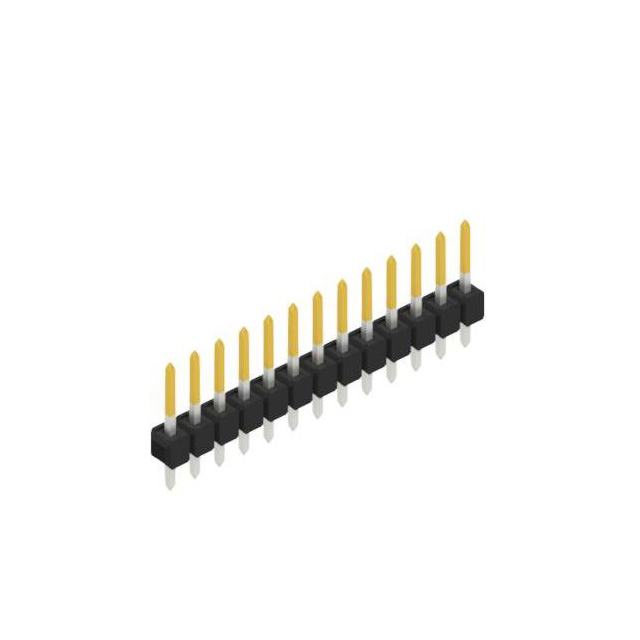

The SL 11 124 13 S is a male PCB connector from the Fischer Elektronik SL 11 series. It features a single row with 13 contacts and a 2.54 mm pitch. The connector utilizes a straight solder terminal for board mounting. Contact surfaces are selectively gold-plated, while the contact sleeves feature nickel plating of at least 0.2 micrometers. The component operates within a temperature range of -40°C to +163°C and withstands reflow soldering conditions of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male header configuration designed for compact circuit board integration
• Selective gold plating on contact surfaces ensures reliable signal transmission
• Nickel-plated contact sleeves provide structural integrity and corrosion resistance
• Straight solder terminals facilitate standard through-hole assembly processes

Headers, Male Pins Applications

• General purpose electronic interconnections
• Industrial control system board-to-board connections
• Consumer electronics internal wiring harnesses
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' denotes selective gold plating as required by the application environment. Confirm that the 13-contact count matches the design schematic exactly. Ensure the straight orientation aligns with the mechanical layout constraints of the host printed circuit board. Check compliance with RoHS directives if the project requires lead-free manufacturing standards.

Headers, Male Pins Selection Notes

Choose this model when a single-row male header with 2.54 mm spacing is necessary. Selective gold plating is preferred for environments requiring high reliability against oxidation. The straight pin configuration suits applications where vertical board space is limited but horizontal clearance allows direct soldering. Verify that the current rating meets the circuit requirements before finalizing the component selection.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series, which specializes in precision-engineered electronic connectors. The series offers various contact counts and plating options to suit different industrial needs. The SL 11 124 13 S represents a specific variant optimized for applications requiring robust electrical performance and precise mechanical alignment in dense packaging scenarios.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row male configuration, and 13-pin count. Verify that replacement parts offer compatible selective gold plating specifications. Ensure the straight solder terminal geometry fits the existing footprint without modification.
