SL 11 124 13 Z

Headers, Male Pins Overview

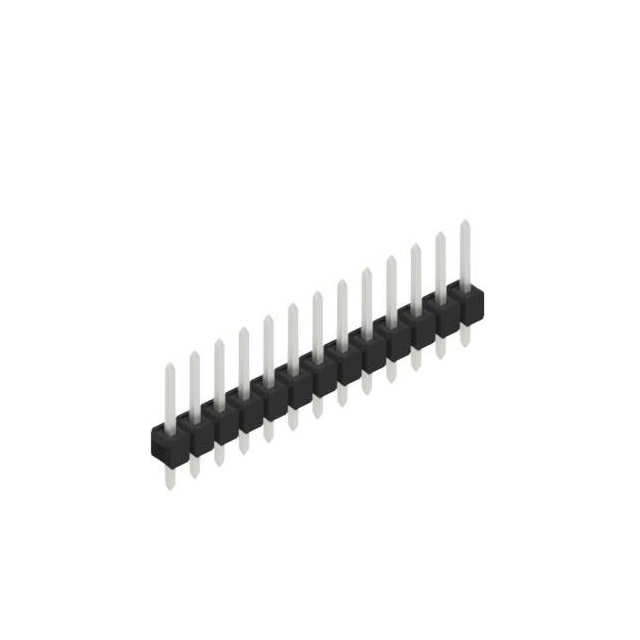

The SL 11 124 13 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and a 2.54 mm (0.100 inch) mating pitch. The component has 13 positions with square-shaped tin-plated contacts. Total contact length is 11.20 mm, with a mating contact length of 5.40 mm and a pin length of 3.00 mm. Insulation height is 2.80 mm. The housing material is polyamide (PA46). The part is in active production status.

Headers, Male Pins Feature Summary

• Single row male PCB connector design
• Tin-plated square contact terminals
• Polyamide insulation housing
• Through-hole mounting configuration

Headers, Male Pins Applications

• General electronic interconnects
• PCB to cable connections
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the exact position count against the specific suffix '13' in the model number, as the series designation 'SL 11 124' often correlates with different pin counts in official documentation. Confirm that the 'Z' suffix indicates standard tin plating rather than gold or nickel variants. Ensure the datasheet matches the physical dimensions for your board layout requirements before ordering.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm pitch is required. The 2.54 mm mating pitch ensures compatibility with standard 0.100 inch grid systems. Consider the through-hole mounting style and PA46 insulation material for thermal stability. Verify that the 13-position count meets the circuit interface needs compared to other variants in the SL 11 124 series.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision-engineered male headers. The series is characterized by compact designs suitable for dense PCB layouts. The SL 11 124 variant specifically denotes a particular housing size and contact arrangement within the broader product line, offering reliable electrical connections for various industrial applications.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik parts from the SL 11 124 series with matching pin counts, such as SL 11 124 13 S or G, depending on required plating. Cross-brand replacements must match the 0.635 mm pitch and 13-position configuration precisely to ensure mechanical fit.
