SL 11 124 14 G

Headers, Male Pins Overview

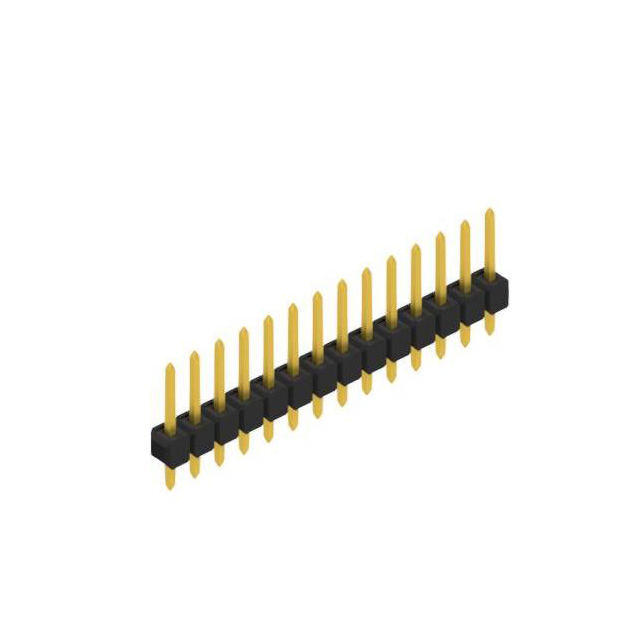

The SL 11 124 14 G is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and contains 14 positions. The contacts are gold-plated with a minimum thickness of 0.2 micrometers over a nickel underlayer. Designed for through-hole mounting, the component utilizes a straight termination style suitable for standard PCB assembly processes.

Headers, Male Pins Feature Summary

• Single-row male header configuration
• Gold-plated contact surfaces for reliable conductivity
• Precision 0.635 mm pitch spacing

Headers, Male Pins Applications

• General-purpose board-to-board interconnections
• Signal routing in compact electronic assemblies
• Prototype development requiring precise pin spacing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating specifications and insulation material properties. Ensure the selected variant matches the required current rating and voltage classification for the target application environment. Cross-reference the official datasheet for thermal resistance values and mechanical retention force requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row layout with fine 0.635 mm pitch is required. The gold plating offers superior corrosion resistance compared to tin variants. Consider the overall height and mating connector compatibility to ensure proper stack-up clearance within the enclosure design constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision headers from Fischer Elektronik. The series is characterized by its narrow 0.635 mm pitch, allowing for high-density connections on printed circuit boards. The SL 11 124 designation indicates a specific housing geometry optimized for stability during soldering and mating cycles.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 0.635 mm pitch and 14-position count. Verify that alternative manufacturers offer compatible gold plating thicknesses and identical mechanical footprint dimensions to ensure interchangeability without redesigning the PCB layout.
