SL 11 124 15 G

Headers, Male Pins Overview

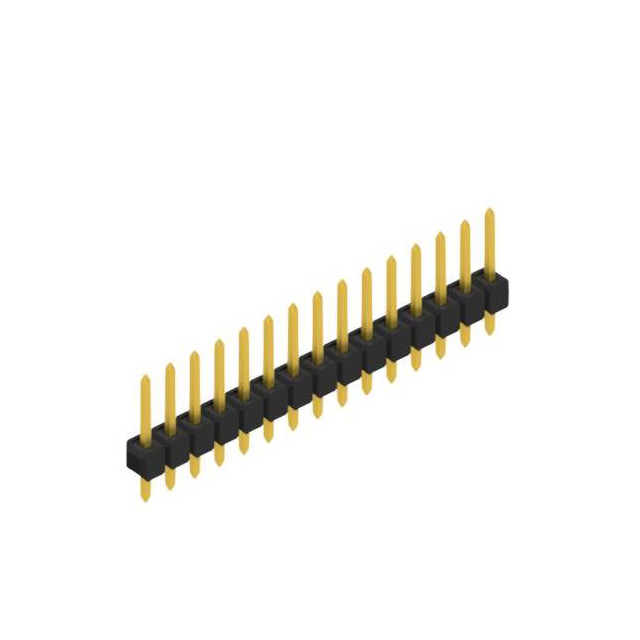

The SL 11 124 15 G is a male header connector from the Fischer Elektronik SL 11 series. It features a single row with 15 contacts and a 0.635 mm contact cross-section. The pitch is 0.100 inches (2.54 mm). The connector utilizes gold plating on the mating surface, with a thickness of 7.87 µin (0.200 µm) over nickel. It is designed for through-hole mounting and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male header configuration
• Gold-plated contacts for reliable conductivity
• Through-hole PCB mounting design

Headers, Male Pins Applications

• General electronic interconnects
• PCB-to-PCB connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the gold plating specification in the official datasheet. Confirm the pin count matches the required circuit design. Ensure the through-hole footprint aligns with the PCB layout guidelines provided by Fischer Elektronik. Cross-reference the part number with authorized distributors to ensure authenticity.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with precise 0.635 mm contact dimensions is required. The gold plating offers superior corrosion resistance compared to tin-only options. Consider the thermal operating range of -40°C to +163°C for environmental suitability. Verify that the 15-pin configuration meets the signal routing requirements.

Headers, Male Pins Part Context

The SL 11 series comprises precision-engineered male headers designed for compact electronic assemblies. These connectors are characterized by their small contact cross-section and consistent pitch. The SL 11 124 variant specifically denotes the housing style and contact arrangement within the broader product family.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik replacement guide for direct substitutes. Generic equivalents may not match the 0.635 mm contact cross-section or gold plating thickness. Verify mechanical compatibility before substitution.
