SL 11 124 15 S

Headers, Male Pins Overview

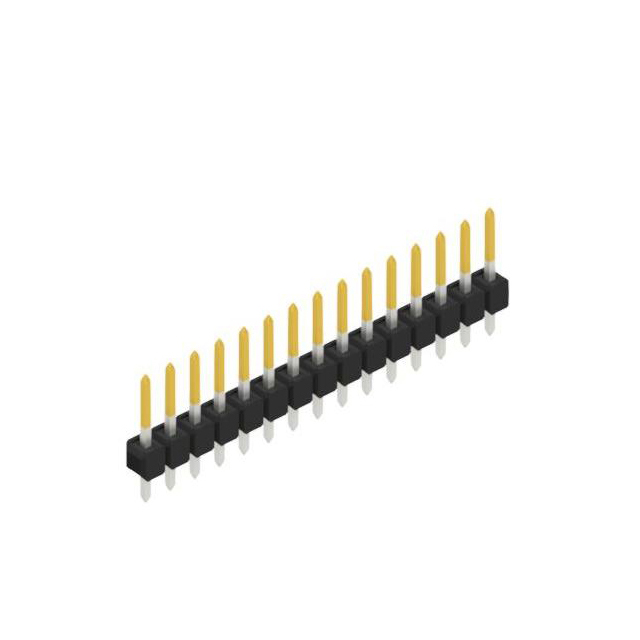

The SL 11 124 15 S is a single-row male header connector manufactured by Fischer Elektronik. It features 15 positions with a 0.100 inch (2.54 mm) pitch and 0.635 mm contact cross-section. Designed for through-hole mounting, the connector utilizes tin-plated copper-silver contacts. The housing is constructed from polyamide (PA46), providing thermal stability up to 163°C. This component serves as a reliable interconnect solution for PCB applications requiring standard spacing and durable mechanical connections.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward board integration
• Through-hole soldering technique ensures secure mechanical attachment
• Polyamide insulation material offers high thermal resistance
• Tin-plated contacts provide corrosion resistance and conductivity

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Industrial control module interfaces
• Consumer electronics assembly
• Test and measurement equipment headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating rather than gold or nickel variants when sourcing replacements. Confirm the 15-position count matches the design requirement, as the SL 11 series spans multiple contact counts. Ensure the through-hole footprint aligns with the target PCB layout specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a single-row, 2.54 mm pitch male header is required for through-hole assembly. The tin-plated finish suits environments where cost-effectiveness is prioritized over extreme conductivity needs. Consider the PA46 insulation rating if operating temperatures approach 163°C. Verify that the 0.635 mm contact width fits within the available panel space constraints.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series, which specializes in precision-engineered male headers. The series offers various contact counts and plating options to suit different electrical and mechanical requirements. The SL 11 124 designation typically refers to the housing style or row configuration within the broader product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 15-position counts and tin plating. Ensure any replacement maintains the 2.54 mm pitch and through-hole mounting style. Generic equivalents must match the 0.635 mm contact cross-section and PA46 insulation material properties.
