SL 11 124 15 Z

Headers, Male Pins Overview

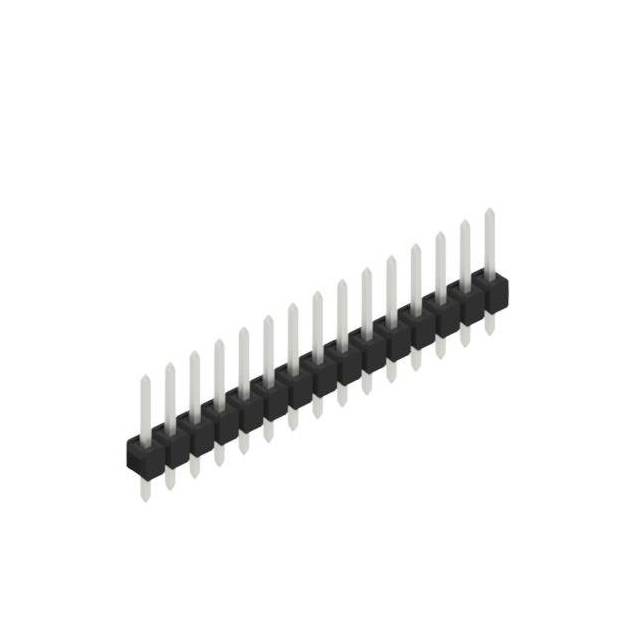

The SL 11 124 15 Z is a single-row pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 15 positions. The connector utilizes through-hole mounting with square contact pins made of copper-tin alloy. The contacts are tin-plated to a thickness of 157.5 µin (4.00 µm). The overall contact length is 0.441 inches (11.20 mm), with a mating length of 0.213 inches (5.40 mm) and a post length of 0.118 inches (3.00 mm). The insulator height is 0.110 inches (2.80 mm). The component is constructed from polyamide (PA46) and is currently in active production.

Headers, Male Pins Feature Summary

• Single-row configuration for compact board-to-board or wire-to-board connections
• Through-hole termination method ensuring secure PCB attachment
• Tin-plated square contact pins for reliable electrical conductivity
• Polyamide insulation material providing thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board signal transmission
• Wire-to-board assembly applications

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm contact plating specifications and terminal type. Ensure compatibility with mating connectors regarding pitch and row count. Confirm that the through-hole footprint matches the target PCB design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch header with 15 positions is required. Consider the tin-plated contact finish for standard environmental conditions. Evaluate the mechanical dimensions, specifically the insulator height and contact lengths, to ensure adequate clearance within the intended enclosure or assembly space.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various position counts while maintaining a consistent 2.54 mm pitch. These connectors are designed for general-purpose electronic applications requiring reliable through-hole mounting and standardized spacing for mating interfaces.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, single-row layout, and 15-position count. Verify that alternative components offer equivalent through-hole termination and compatible contact materials. Cross-reference mechanical drawings to ensure dimensional interchangeability.
