SL 11 124 16 G

Headers, Male Pins Overview

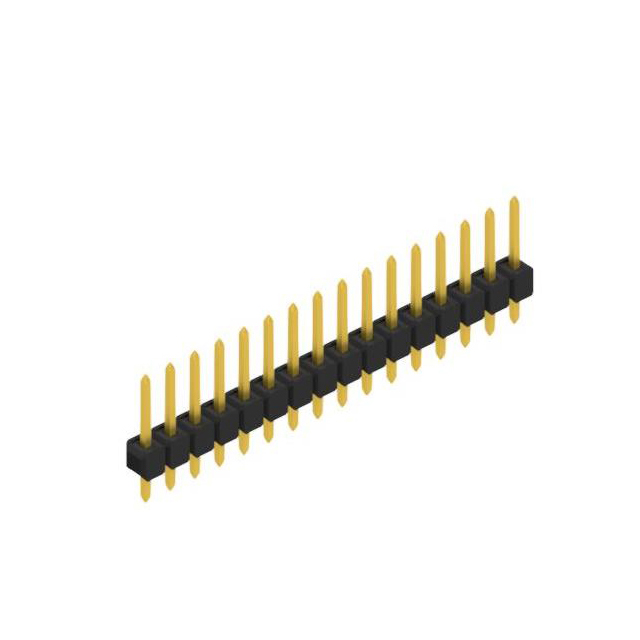

The SL 11 124 16 G is a male header connector from the Fischer Elektronik SL 11 series. It features 16 positions with a single row and a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole termination for PCB mounting. Contact surfaces are gold-plated, providing reliable conductivity. The housing is constructed from PA 4.6 GF material rated UL 94 V-0. Rated current is 3 A at 250 V AC.

Headers, Male Pins Feature Summary

• Single-row male header configuration for compact board stacking
• Gold-plated contacts ensure stable electrical performance
• Through-hole termination secures connection to printed circuit boards
• High-temperature resistant PA 4.6 GF insulation material

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Industrial control panel wiring
• Consumer electronics assembly
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' confirms gold plating on contacts, as other suffixes like 'S' or 'Z' indicate tin or nickel finishes. Confirm the pin count matches the '16' designation in the model number. Ensure the datasheet specifies the exact contact length and insertion depth required for your PCB stack-up. Check for RoHS compliance status if restricted substances are a concern for your manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required for low-to-medium current applications up to 3 A. The 2.54 mm pitch is standard for general electronics but verify spacing against mating socket dimensions. Consider the operating temperature range and voltage rating of 250 V AC. Evaluate mechanical stability needs, as through-hole mounting offers higher retention than surface mount alternatives.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision PCB connectors. The series offers various pin counts and termination options. The SL 11 124 variant specifically denotes a straight male header design. Fischer Elektronik specializes in high-reliability interconnect solutions for demanding industrial and commercial environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Generic equivalents may exist but require verification of pitch, current rating, and contact plating compatibility.
