Headers, Male Pins Overview

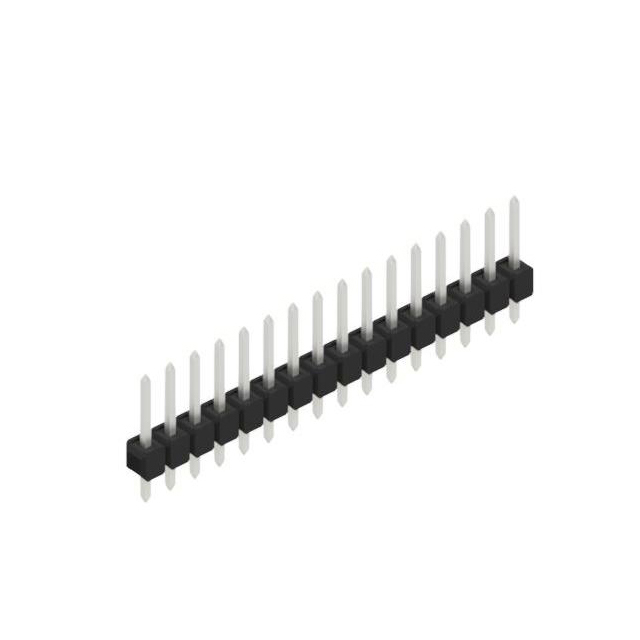

The SL 11 124 16 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 16 positions with a 0.100" (2.54mm) pitch and is designed for through-hole mounting. The contacts are made of copper-tin alloy with a tin plating, providing a contact resistance of ≤5 mΩ. Rated for 3 A current and 250 V AC voltage, the connector utilizes PA 4.6 GF insulation material compliant with UL 94 V-0 standards.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Through-hole termination method ensuring secure PCB attachment
• Tin-plated copper-tin alloy contacts for reliable conductivity
• High-temperature resistant PA 4.6 GF insulation material

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' corresponds to the tin-plated variant as per the official datasheet. Confirm that the 16-position count matches the required circuit design. Ensure the through-hole footprint aligns with the PCB layout specifications provided in the manufacturer's documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54mm pitch male header is required for low-current applications up to 3 A. The tin plating offers cost-effective connectivity suitable for standard environments. Consider the physical dimensions and insulation height to ensure compatibility with mating connectors and enclosure constraints within the target electronic assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered connectors from Fischer Elektronik. The series is characterized by compact designs and reliable performance for various interconnection needs. The SL 11 124 model specifically denotes the housing geometry and row configuration, while the '16' indicates the pin count and 'Z' specifies the contact finish.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for alternative pin counts or contact finishes within the SL 11 series. Verify mechanical compatibility and electrical ratings before substituting with generic equivalents. No direct cross-model substitutes are confirmed in public documentation.
