SL 11 124 17 G

Headers, Male Pins Overview

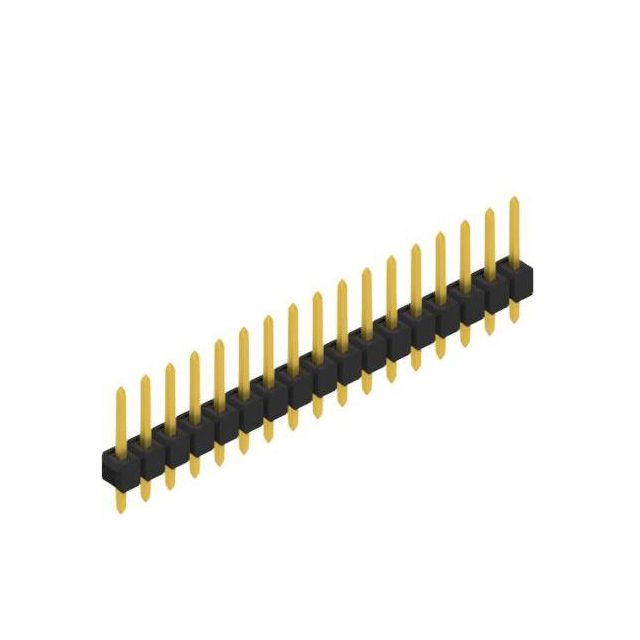

The SL 11 124 17 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 17 positions and a 0.100 inch (2.54 mm) pitch. The component utilizes through-hole termination for PCB mounting. Contact surfaces are gold-plated to ensure reliable conductivity. The connector supports a maximum rated current of 3 A and a voltage of 250 VAC. Insulation material is polyamide, providing stability across an operating temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact circuit board integration
• Gold-plated contact surfaces for enhanced corrosion resistance and signal integrity
• Through-hole termination method ensuring secure mechanical attachment

Headers, Male Pins Applications

• General-purpose electronic interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating finish as documented in official Fischer Elektronik datasheets. Confirm that the 17-position count matches the design requirements. Ensure compatibility with standard 2.54 mm pitch mating connectors. Cross-reference the thermal rating against the application's peak operating temperatures to prevent insulation degradation during soldering or service.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required for 2.54 mm spacing applications. Consider the 3 A current rating and 250 VAC voltage limit for circuit safety. Evaluate the through-hole mounting style against available PCB space. Compare the polyamide insulation properties with environmental conditions. Verify the physical dimensions against enclosure constraints before finalizing the design.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision-engineered pin headers. The series offers various position counts and configurations for different connectivity needs. The SL 11 124 17 G represents a specific variant within this lineup, characterized by its 17-pin capacity and gold-plated contacts. It is designed for reliable performance in standard electronic assemblies requiring robust interconnect solutions.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for direct equivalents with identical pin counts and pitch. Verify that any substitute maintains the same gold plating specification and current ratings. Ensure mechanical dimensions match existing PCB footprints. Check thermal stability limits against original specifications.
