SL 11 124 17 S

Headers, Male Pins Overview

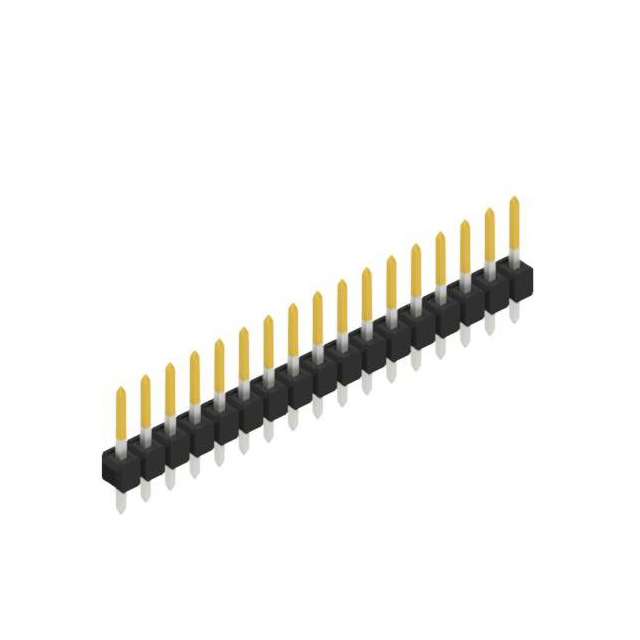

The SL 11 124 17 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and contains 17 positions. The connector utilizes through-hole termination for PCB mounting. Contact surfaces are tin-plated to ensure reliable electrical conductivity. The component is designed for board-to-board or wire-to-board interconnection applications requiring compact spacing.

Headers, Male Pins Feature Summary

• Single row configuration with precise 0.635 mm pitch
• Tin-plated contacts for corrosion resistance
• Through-hole mounting for secure PCB attachment

Headers, Male Pins Applications

• Board-to-board interconnects
• Wire-to-board connections
• Compact electronic module assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating as per Fischer Elektronik documentation. Confirm the 17-position count matches the required circuit design. Ensure the 0.635 mm pitch aligns with mating connector specifications. Check RoHS compliance status if required by project standards. Validate mechanical dimensions against PCB layout constraints before ordering.

Headers, Male Pins Selection Notes

Select this model when a narrow 0.635 mm pitch is necessary to maximize connection density within limited space. Choose the tin-plated variant for general-purpose applications where high current capacity is not critical. Ensure the single-row format fits the available vertical clearance on the assembly. Verify that the through-hole process capability matches the manufacturing requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered connectors from Fischer Elektronik. The series is characterized by small form factors and reliable performance in dense electronic assemblies. The SL 11 124 designation refers to the specific housing style and contact arrangement within this product line, ensuring compatibility with other components in the same family.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 0.635 mm pitch and 17-position count. Tin-plated contacts are required for equivalent environmental performance. Single-row through-hole headers with matching insulator height are suitable alternatives. Verify that any replacement part meets the same mechanical locking and insertion force specifications.
