SL 11 124 17 Z

Headers, Male Pins Overview

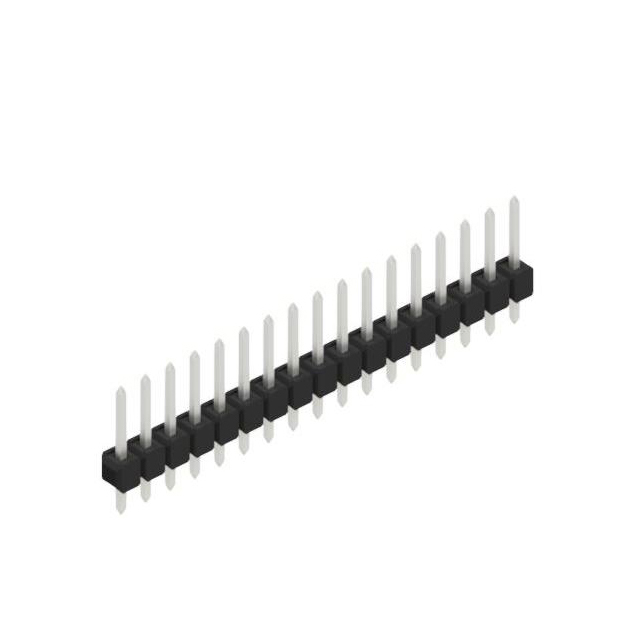

The SL 11 124 17 Z is a single-row pin header connector manufactured by Fischer Elektronik. It features 17 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole mounting and square male pins made of copper-tin alloy. Contact plating on the mating side is tin, with a thickness of 157.5 µin (4.00 µm). The post contact finish is also tin-plated. Insulation material consists of polyamide (PA46) or nylon 4/6, glass-filled. The operating temperature range spans from -40°C to +163°C. Maximum contact resistance is 5 mOhm, and insulation resistance is 1,000,000 MOhm.

Headers, Male Pins Feature Summary

• Single-row configuration with 17 positions for standard spacing applications
• Through-hole mounting design suitable for PCB integration
• Tin-plated copper-tin contacts ensuring reliable electrical connection
• Glass-filled polyamide insulation providing thermal stability up to 163°C

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• General purpose electronic assemblies
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the exact suffix 'Z' against official Fischer Elektronik documentation to confirm specific packaging or handling variations. Ensure compatibility with mating connectors regarding pin height and insulation thickness. Confirm that the tin plating specification meets the required corrosion resistance standards for the intended environment. Check lead-free compliance if RoHS restrictions apply to the final assembly process.

Headers, Male Pins Selection Notes

Select this component when a single-row, 17-position header with 2.54 mm pitch is required. The through-hole format is appropriate for high-reliability mechanical anchoring. Consider the 163°C operating limit for high-temperature environments. Verify that the square pin shape aligns with the mating socket design. Ensure the 3 A current rating suffices for the circuit load requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 124 series of pin headers from Fischer Elektronik. The series offers various position counts and row configurations. The SL 11 124 17 Z specifically denotes the 17-position variant within this standardized lineup. It shares common insulation materials and contact finishes with other models in the same family, differing primarily in pin count and physical dimensions.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
