SL 11 124 18 G

Headers, Male Pins Overview

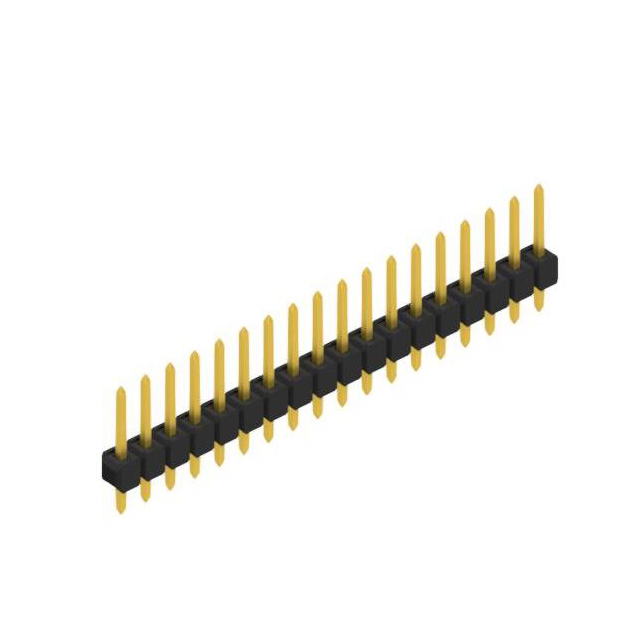

The SL 11 124 18 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 18 positions. The contacts are gold-plated copper-tin, designed for through-hole mounting with a straight body orientation. The component supports a maximum rated current of 3 A and a voltage of 250 VAC. Operating temperature ranges from -40°C to +163°C, with soldering resistance up to +260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Gold-plated contact finish ensures reliable conductivity and corrosion resistance
• Straight body orientation facilitates standard PCB integration
• Square pin cross-section provides precise alignment and secure mating

Headers, Male Pins Applications

• General electronic circuit interconnections
• PCB-to-PCB communication links
• Industrial control system signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' confirms gold plating rather than tin or nickel variants. Confirm the 18-position count matches the design requirement. Ensure the through-hole termination method aligns with the assembly process. Check that the operating temperature range meets environmental specifications. Validate the 250 VAC rating against circuit requirements.

Headers, Male Pins Selection Notes

Select this model when gold plating is required for low-contact-resistance applications. Choose based on the 2.54 mm pitch compatibility with existing board layouts. Consider the 3 A current capacity for power distribution needs. Verify the straight configuration fits the mechanical constraints. Ensure the PA46 insulation material suits the thermal environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 124 series of precision-engineered headers. The series offers various position counts and contact finishes. Fischer Elektronik designs these for compact, reliable connections in dense PCB arrangements. The single-row format simplifies routing while maintaining high connection density.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching pitch, row count, and contact finish specifications.
