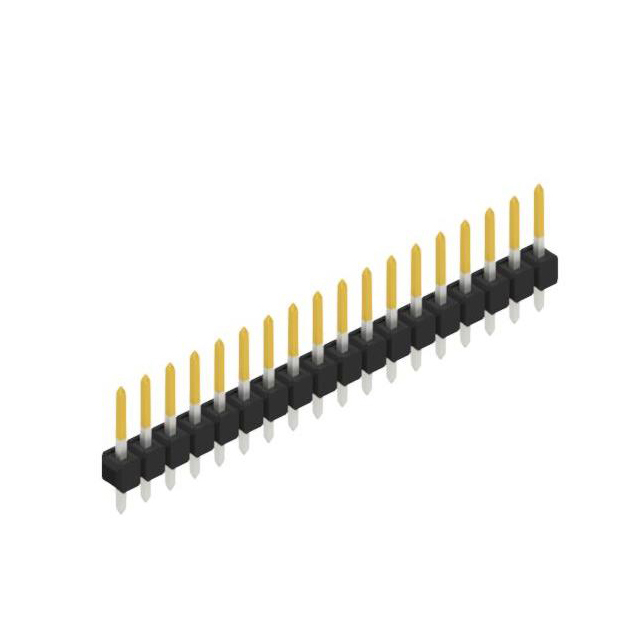

SL 11 124 18 S

Headers, Male Pins Overview

The SL 11 124 18 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 18 positions with a 0.100 inch (2.54 mm) pitch and a contact cross-section of 0.635 mm. Designed for through-hole mounting, the connector utilizes a straight configuration with square contacts. The mating surface is finished with tin plating over nickel, providing a thickness of at least 0.2 micrometers for nickel and 46 micrometers for tin. The component operates within a temperature range of -40°C to +163°C and withstands soldering temperatures of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin header design for board-to-board or wire-to-board connections
• Through-hole mounting technology ensuring secure PCB attachment
• Tin-plated contacts over nickel base for reliable conductivity
• Straight profile construction for standard vertical integration

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Wire-to-board connections for harness integration
• General-purpose signal routing in industrial electronics
• Prototyping and development board interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' corresponds to the tin-plated variant when sourcing. Confirm that the 18-position count matches the required circuit density. Ensure the through-hole footprint aligns with the PCB layout specifications. Check that the operating temperature range meets the environmental requirements of the target application. Validate compatibility with mating female connectors from the same series.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch header is required for through-hole assembly. The tin-plated finish is suitable for general applications where gold plating is not necessary. Consider the straight form factor for standard vertical mounting scenarios. Evaluate the 18-position capacity against the total signal or power lines needed. Ensure the mechanical height and contact length fit within the available spatial constraints of the enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 11 124 series of precision-engineered connectors from Fischer Elektronik. The series offers various position counts and plating options to suit different electrical and mechanical needs. The SL 11 124 designation indicates the specific series and row configuration. Variants within this family differ primarily in the number of pins and the contact surface treatment, such as gold or tin finishes.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, 18 positions, and through-hole mounting style. Verify that any replacement part shares the same 0.635 mm contact cross-section and straight profile. Ensure the alternative connector supports the same operating temperature range and soldering thermal limits. Cross-reference mating parts to guarantee interface compatibility.
