SL 11 124 18 Z

Headers, Male Pins Overview

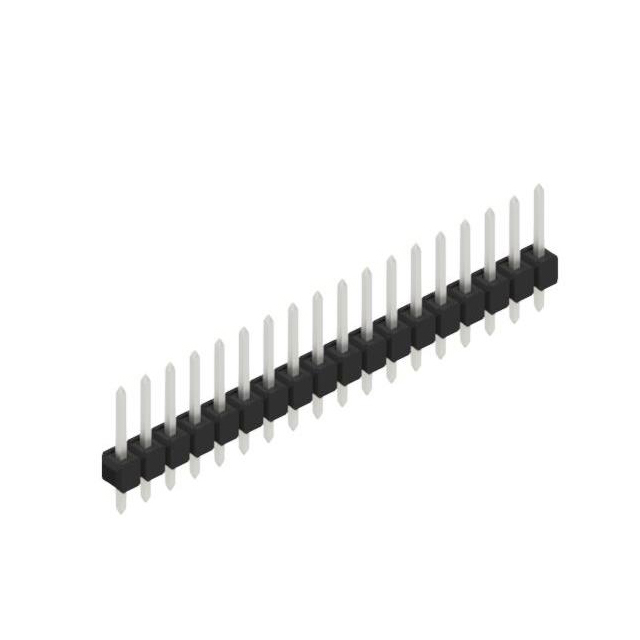

The SL 11 124 18 Z is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole PCB mounting. It features a single row of 18 contacts with a pitch of 0.635 mm (0.025 in). The connector utilizes copper-tin contact material with tin plating. Key dimensions include an overall length of approximately 12.4 mm and a height of 6.6 mm. This component serves as a reliable interconnection solution for electronic assemblies requiring precise alignment and secure mating.

Headers, Male Pins Feature Summary

• Single row configuration for compact circuit board integration
• Through-hole mounting technology for secure PCB attachment
• Tin-plated copper-tin contacts for corrosion resistance
• Precision 0.635 mm pitch for accurate signal routing

Headers, Male Pins Applications

• General purpose electronic equipment interconnections
• Industrial control system module interfaces
• Consumer electronics internal wiring harnesses
• Test and measurement device connectors

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' corresponds to the tin-plated variant when sourcing. Confirm that the 18-position count matches the design requirements. Ensure compatibility with mating female headers of identical pitch. Check datasheet for thermal handling specifications during soldering processes. Validate mechanical retention strength against vibration standards if applicable to the end-use environment.

Headers, Male Pins Selection Notes

Choose this model when a low-profile, single-row male header is required for dense PCB layouts. The 0.635 mm pitch allows for high pin counts in limited space. Consider the tin plating for general environmental protection rather than harsh corrosive conditions. Evaluate the through-hole mounting method against surface-mount alternatives if space constraints differ. Ensure the contact length accommodates the mating connector's depth requirements.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 family of PCB connectors. The series offers various contact counts and configurations tailored for different assembly needs. The SL 11 124 designation indicates specific dimensional characteristics within the product line. These connectors are engineered for durability and consistent electrical performance in standard industrial applications.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 18 positions, and single-row male header format. Verify identical mounting style and contact material composition. Cross-reference dimensions A, B, and C from official datasheets to ensure physical compatibility. No alternative part numbers are publicly confirmed for direct replacement without manual verification.
