SL 11 124 19 G

Headers, Male Pins Overview

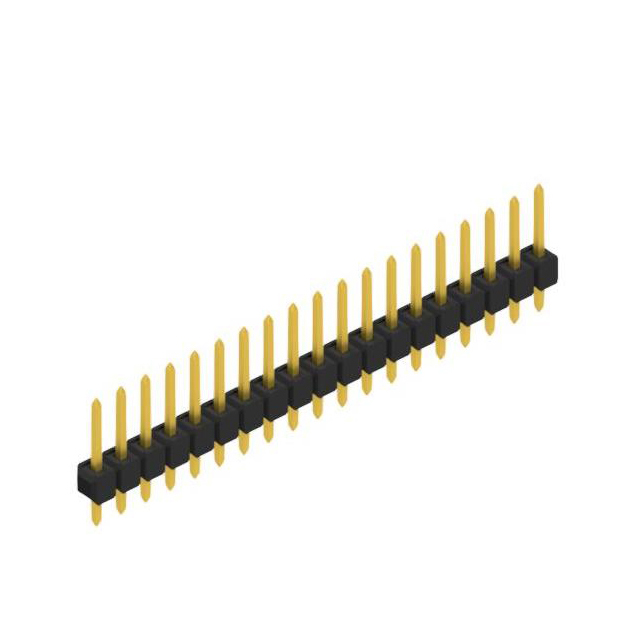

The SL 11 124 19 G is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm pin cross-section and a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The component includes 19 positions with gold-plated contacts to ensure reliable signal transmission. It operates within a temperature range of -40°C to +163°C and withstands soldering temperatures of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male header configuration for compact PCB integration
• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Through-hole mounting style ensuring secure mechanical attachment

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable interconnects
• Industrial control systems utilizing standard 2.54 mm spacing
• Consumer electronics manufacturing with high-reliability requirements

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating connectors regarding pin dimensions and row alignment. Check for RoHS compliance status if required by project regulations. Confirm that the operating temperature range meets the environmental conditions of the intended application before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The gold plating makes it suitable for applications demanding low contact resistance and durability. Consider the physical height and board thickness constraints to ensure proper fit. Compare against other series in the Fischer Elektronik lineup if different pin counts or mounting styles are needed for the specific design.

Headers, Male Pins Part Context

This component belongs to the SL 11 124 series of precision-engineered electronic connectors. The series is characterized by its consistent 0.635 mm pin cross-section and standardized 2.54 mm pitch. These headers are widely used in various industries for their reliability and compact design, offering a robust solution for connecting PCBs to cables or other boards.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 19-position count, single-row layout, and 2.54 mm pitch. Verify that any alternative offers equivalent gold plating and through-hole mounting capabilities. Ensure the replacement maintains the same thermal and electrical performance characteristics as specified by the original manufacturer.
