SL 11 124 19 S

Headers, Male Pins Overview

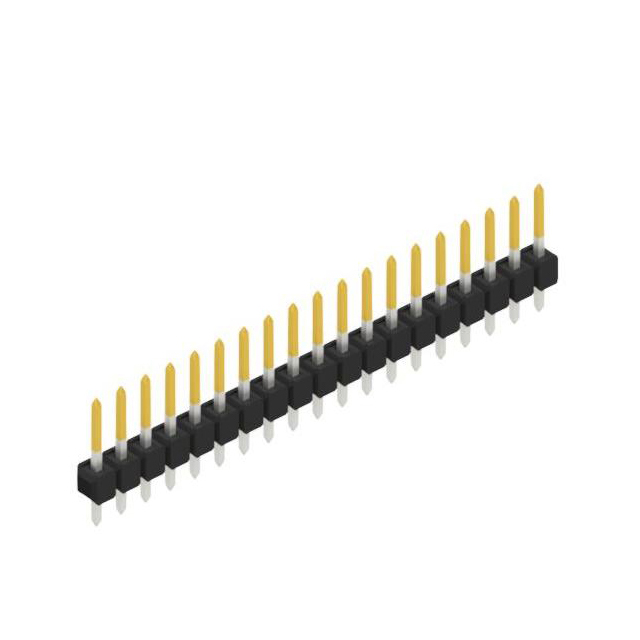

The SL 11 124 19 S is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole mounting on printed circuit boards. It features a single row with 19 contacts and a standard pitch of 0.100 inches (2.54 mm). The contact cross-section measures 0.635 mm, providing robust mechanical stability. The mating surface is finished with tin plating to ensure reliable electrical conductivity. This component utilizes a square contact shape and is constructed with copper-tin contact material and polyamide insulation.

Headers, Male Pins Feature Summary

• Single-row male header configuration for direct PCB integration
• Standard 2.54 mm pitch with 0.635 mm contact cross-section
• Tin-plated mating surfaces for consistent signal transmission
• Square contact geometry for secure alignment

Headers, Male Pins Applications

• General-purpose board-to-board interconnections
• Industrial control panel wiring
• Test and measurement equipment interfaces
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' corresponds to the required tin plating finish as per official datasheets. Confirm that the 19-contact count matches the design requirements. Ensure compatibility with mating female sockets from the same or compatible series. Check RoHS compliance status if restricted substances are prohibited in the target application environment.

Headers, Male Pins Selection Notes

Select this part when a single-row male header with a 2.54 mm pitch is required. The 0.635 mm contact thickness offers higher current capacity compared to thinner variants. Choose the tin-plated version for cost-effective applications where gold plating is unnecessary. Ensure the straight solder terminal style fits the board layout constraints.

Headers, Male Pins Part Context

This component belongs to the SL 11 family of precision connectors manufactured by Fischer Elektronik GmbH & Co. KG. The series is characterized by standardized dimensions and reliable performance for electronic assemblies. Similar parts in the lineup vary primarily by contact count and plating options, such as the SL 11 124 36 Z variant which differs in pin count and potentially finish.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, single-row male configuration, and 19-pin count. Verify that alternative manufacturers offer comparable 0.635 mm contact cross-sections to ensure mechanical fit. Cross-reference mating socket dimensions to guarantee interoperability.
