SL 11 124 19 Z

Headers, Male Pins Overview

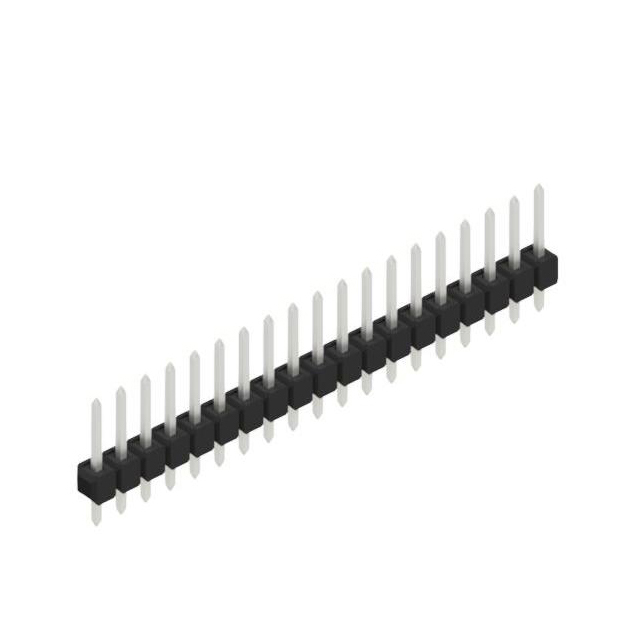

The SL 11 124 19 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm pitch and accommodates 19 positions. The component utilizes through-hole termination for PCB mounting. Contact surfaces are tin-plated with a thickness of 157.5 µin (4.00 µm). The mating contact length measures 0.319 inches (8.10 mm), while the pin length is 0.118 inches (3.00 mm). Total contact length is 0.547 inches (13.90 mm). Insulation height is 0.110 inches (2.80 mm). The housing material is polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row configuration with 0.635 mm spacing for compact circuit board integration.
• Through-hole mounting design ensuring secure mechanical attachment to printed circuit boards.
• Tin-plated contacts providing reliable electrical connectivity and corrosion resistance.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring single-row interconnects.
• Industrial control systems utilizing standard male header configurations.
• Consumer electronics manufacturing involving through-hole soldering processes.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against official Fischer Elektronik documentation to confirm plating specifications and material composition. Ensure compatibility with mating connectors regarding pitch and row count. Confirm that the through-hole termination method aligns with the target assembly process capabilities. Cross-reference the 19-position count with schematic requirements to prevent mismatched connections during production.

Headers, Male Pins Selection Notes

Select this component when a single-row, 0.635 mm pitch male header is required for through-hole applications. The tin-plated finish suits environments where gold plating is unnecessary. Verify that the 19-position count matches the design needs. Consider the PA46 insulation material properties for thermal stability. Ensure the physical dimensions fit within the available PCB real estate constraints.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which specializes in precision-engineered electronic components. The series offers various configurations including different row counts and pitches. The SL 11 124 variant specifically denotes the single-row 0.635 mm pitch family. This model represents a standard male header solution within the manufacturer's broader portfolio of board-to-board and cable-to-board interconnect systems.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 19 positions, and single-row layout. Verify that alternative manufacturers offer comparable tin plating thickness and PA46 insulation. Ensure through-hole termination compatibility. Check for identical overall height and contact length specifications to maintain mechanical fit in existing enclosures or PCB layouts without redesign.
