SL 11 124 20 G

Headers, Male Pins Overview

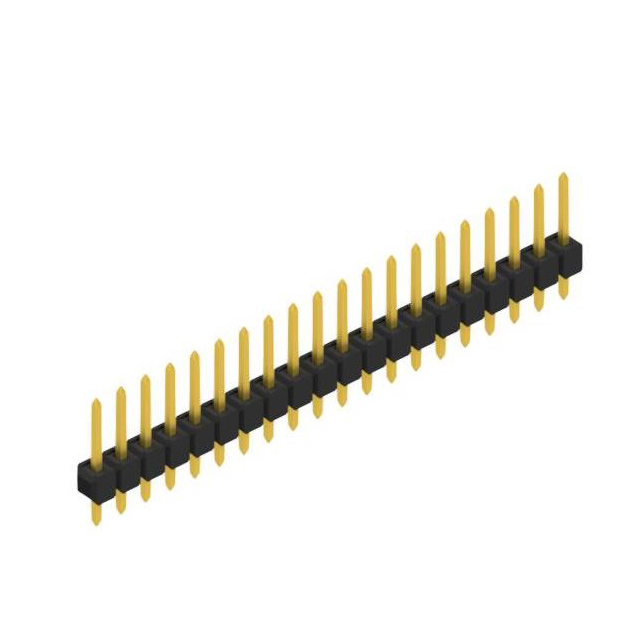

The SL 11 124 20 G is a male header connector from the Fischer Elektronik SL 11 series. It features a single row with 20 positions and a pitch of 0.100 inches (2.54 mm). The connector utilizes through-hole termination for PCB mounting. Contact surfaces are gold-plated to ensure reliable electrical performance. The housing is constructed from black insulating material, providing structural integrity and environmental protection for the internal contacts.

Headers, Male Pins Feature Summary

• Single-row male header configuration
• Gold-plated contact surfaces
• Through-hole PCB termination

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating finish as per the manufacturer's datasheet. Confirm that the 20-position count matches the design requirements. Ensure the through-hole package style aligns with the target PCB layout. Cross-reference the official Fischer Elektronik documentation to validate all physical dimensions and material specifications before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required. The 2.54 mm pitch is standard for many electronic interfaces. Consider the mechanical height and thermal resistance during soldering if operating in high-temperature environments. Verify compatibility with mating female connectors or sockets within the same system architecture to ensure proper engagement and signal integrity.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors by Fischer Elektronik. The series offers various pin counts and configurations for different application needs. The SL 11 124 designation indicates the specific model within this family, characterized by its single-row layout and standard spacing. This series is designed for robust connectivity in industrial and consumer electronics applications.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik catalog for direct substitutes within the SL 11 series. Verify that any alternative part maintains the same 2.54 mm pitch and single-row configuration. Ensure the replacement has compatible contact plating and termination methods. Do not assume interchangeability with other manufacturers' parts without verifying mechanical and electrical specifications.
